Solar Systems

Off-Grid Lithium Battery Solar System

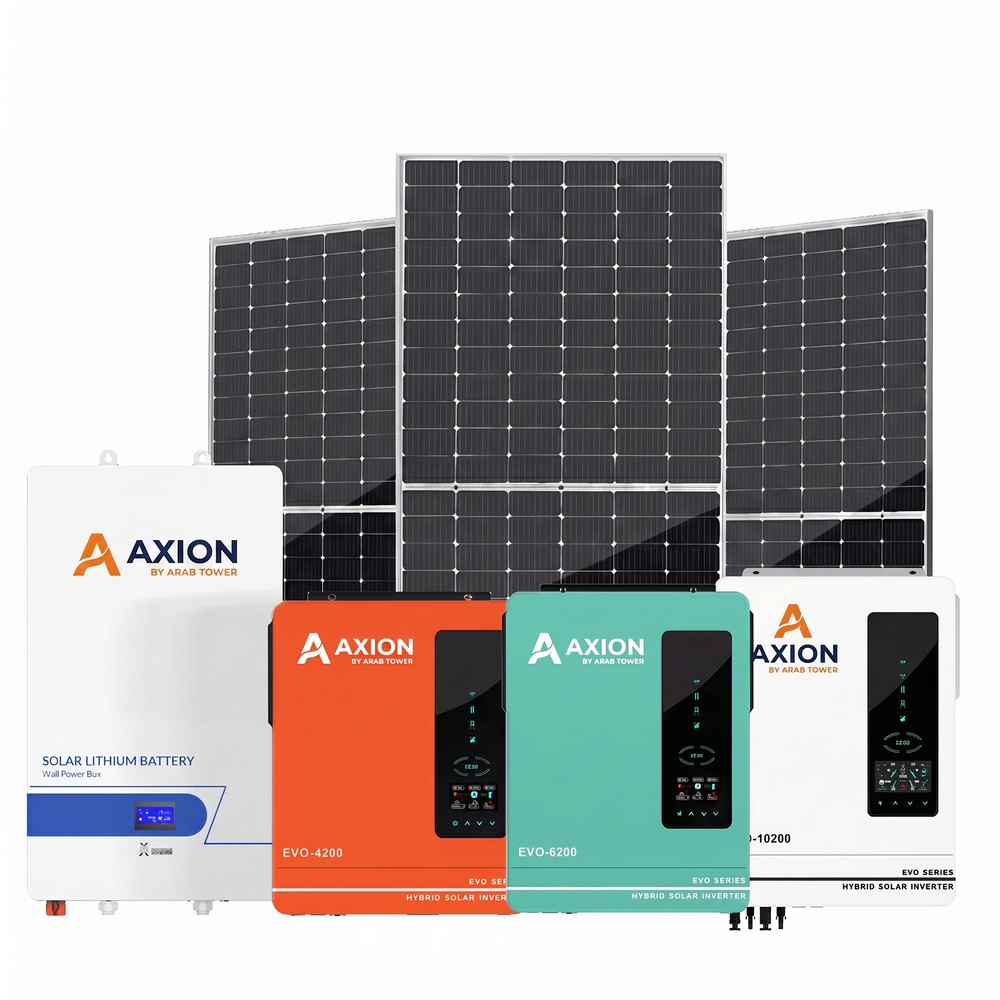

Name: AXION Off-Grid Lithium Battery Solar System
Brand: AXION by Arab Tower

AX-SYS Series · 4.2kW to 10.2kW

Complete off-grid solar system — inverter, panels, battery and accessories supplied as one integrated package

System Power Range

4.2–10.2 kW

Monocrystalline Solar Panel

580 W

Lithium Battery Standard

LiFePO4

Day-Night Independent Operation

24/7

Technical Specification

Complete off-grid solar system — inverter, panels, battery and accessories supplied as one integrated package
Day and night independent operation — no grid connection required for continuous power supply
High-efficiency 580W monocrystalline half-cell solar panels — multi-busbar design for maximum energy harvest
Hybrid inverter with dual AC output — operates with or without battery, pure sine wave output
LiFePO4 lithium battery with smart BMS — wall-mounted design, automatic parallel addressing, 6,000+ cycle life
Scalable from 4.2kW residential to 10.2kW small commercial — three pre-configured system sizes
25+ year system lifespan with international standard components and cabling throughout

Parameter	Specification
Solar Panel Type	Half-cell Monocrystalline · 580W per panel
Panel Rack	Roof-mounted (standard)
Inverter Type	Hybrid · Pure Sine Wave · Dual AC Output
Battery Options	LiFePO4 (standard) · Lead-acid (alternative)
System Voltage	24VDC (4.2kW) · 48VDC (6.2kW / 10.2kW)
Grid Connection	Off-grid independent · No grid required
Cabling	International standard · Included
Monitoring	WiFi · iOS / Android app
Certifications	CE · RoHS

System	Inverter	Solar Panels	Lithium Batt.	Lead-Acid Alt.
SYS-4200	4200W	580W × 6	25.6V 200Ah × 1	200Ah × 4
SYS-6200	6200W	580W × 10	51.2V 100Ah × 2	250Ah × 4
SYS-10200	10200W	580W × 18	51.2V 200Ah × 2	250Ah × 12

Specify the Off-Grid Lithium Battery Solar System for your project
