Lithium Battery Solar System — AXION by Arab Tower
AXION by Arab TowerSolar Systems

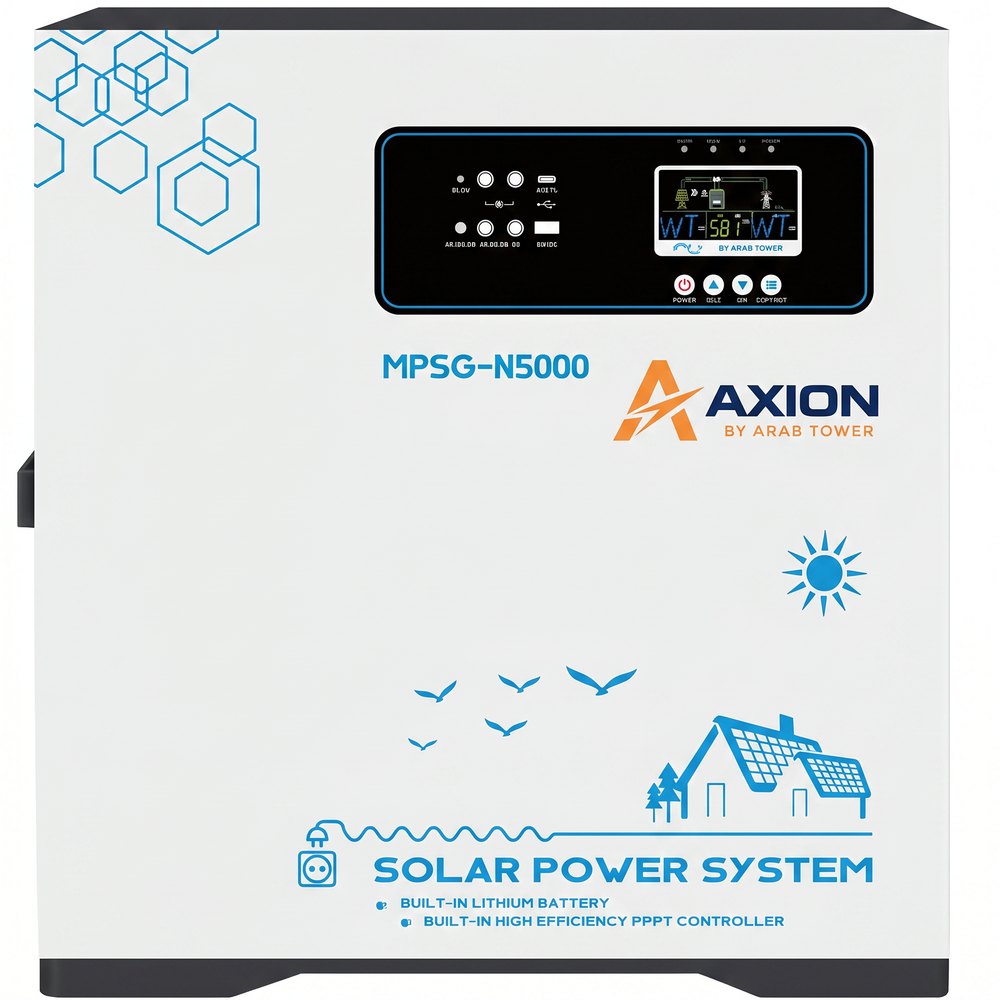

Lithium Battery Solar System

MPSG-N Series · 500W to 5,000W

All-in-One Solar Power System — built-in LiFePO4 battery, MPPT controller and pure sine wave inverter in a single unit

Request a Quotation Download Datasheet
Power Range
0.5–5 kW
Max Battery Storage
5 kWh
Battery Chemistry
LiFePO4
Transfer Time
8 ms
Technical Specification

Key Features

  • All-in-One Solar Power System — built-in LiFePO4 battery, MPPT controller and pure sine wave inverter in a single unit
  • Built-in LiFePO4 Battery — 600Wh to 5,000Wh storage capacity with overcharge and overdischarge protection
  • MPPT Solar Charge Controller — improves charging efficiency by more than 20% over PWM
  • Multiple Output Options — AC pure sine wave, 2× USB 5VDC and 2× 12VDC ports for versatile load connection
  • Flexible Operating Modes — mains priority, energy-saving and battery modes with automatic transfer switching

Technical Specifications

ParameterSpecification
Output WaveformPure Sine Wave
Output Voltage220/240VAC (optional 110/120VAC)
Output Frequency50/60Hz
Input Voltage110/220VAC ±10%
Transfer Time5–8ms (typical)
Battery ChemistryLiFePO4 (built-in)
DC Output2× USB 5V + 2× 12VDC
CommunicationRS485 / WiFi (optional)
Operating Temperature−10°C to +50°C

Model Range

SpecificationN500N1000N2000N3000N5000
Rated Power500W1,000W2,000W3,000W5,000W
Battery600Wh1,200Wh2,500Wh3,000Wh5,000Wh
Battery Voltage12.8V25.6V25.6V25.6V48V
Max PV Power240W480W800W1,500W3,000W
PV Range15–90V30–90V30–90V30–130V60–160V
Charge Current20A20A30A60A60A

Specify the Lithium Battery Solar System for your project

AXION solar & storage, supplied and engineered into your system by Arab Tower — across the UAE and internationally.
