Stacked Lithium Battery Solar Energy Storage System — AXION by Arab Tower
AXION by Arab TowerSolar Systems

Stacked Lithium Battery Solar Energy Storage System

MSPG-D Series · 4.2kW to 10.2kW

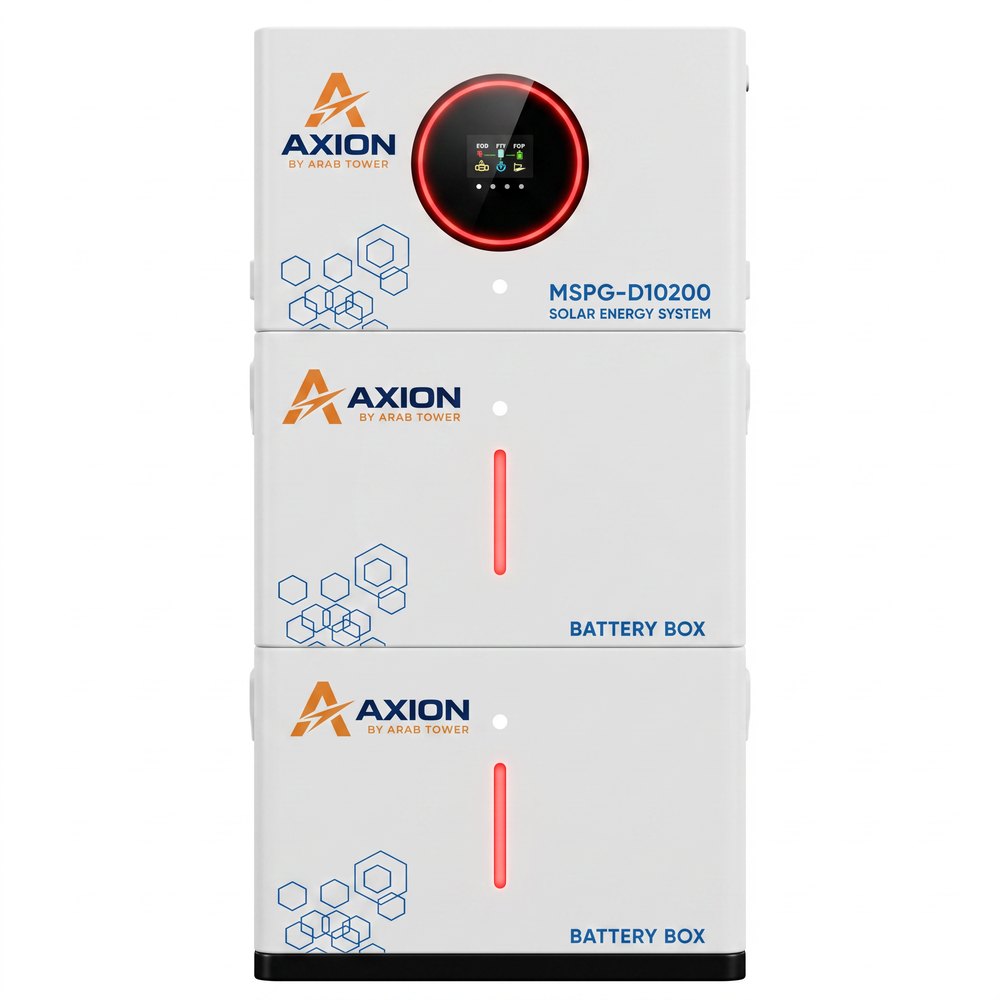

Stacked Modular Design — inverter module on top with stackable battery boxes below, expandable up to 10 battery modules

Request a Quotation Download Datasheet
Power Range
4.2–10.2 kW
Max Energy Storage
15 kWh
Max PV Voltage
450 V
Max Battery Modules
10×
Technical Specification

Key Features

  • Stacked Modular Design — inverter module on top with stackable battery boxes below, expandable up to 10 battery modules
  • Pure Sine Wave Hybrid Inverter — 4.2kW to 10.2kW rated output with dual MPPT on the 10.2kW model
  • Built-in LiFePO4 Battery Storage — 5kWh to 15kWh capacity with built-in BMS for deep cycle reliability
  • Wide PV Input Range — MPPT up to 450VDC for flexible solar array configuration
  • WiFi Monitoring — remote real-time system monitoring and energy management via mobile device

Technical Specifications

ParameterSpecification
Output Voltage220/230/240VAC
Output Frequency50Hz / 60Hz (auto sensing)
Input Voltage Range90–280VAC or 170–280VAC
Battery ChemistryLiFePO4
Output WaveformPure Sine Wave
ExpansionStackable modular (up to 10 battery modules)
MonitoringWiFi

Model Range

SpecificationMSPG-D4200MSPG-D6200MSPG-D10200
Rated Power4,200W6,200W10,200W
Max PV Input6,200W6,500W10,800W
MPPT Range60–450VDC60–450VDC90–450VDC
MPPT Trackers112
Battery Voltage25.6V51.2V51.2V
Energy Storage5kWh10kWh15kWh
Max Discharge200A200A300A

Specify the Stacked Lithium Battery Solar Energy Storage System for your project

AXION solar & storage, supplied and engineered into your system by Arab Tower — across the UAE and internationally.
