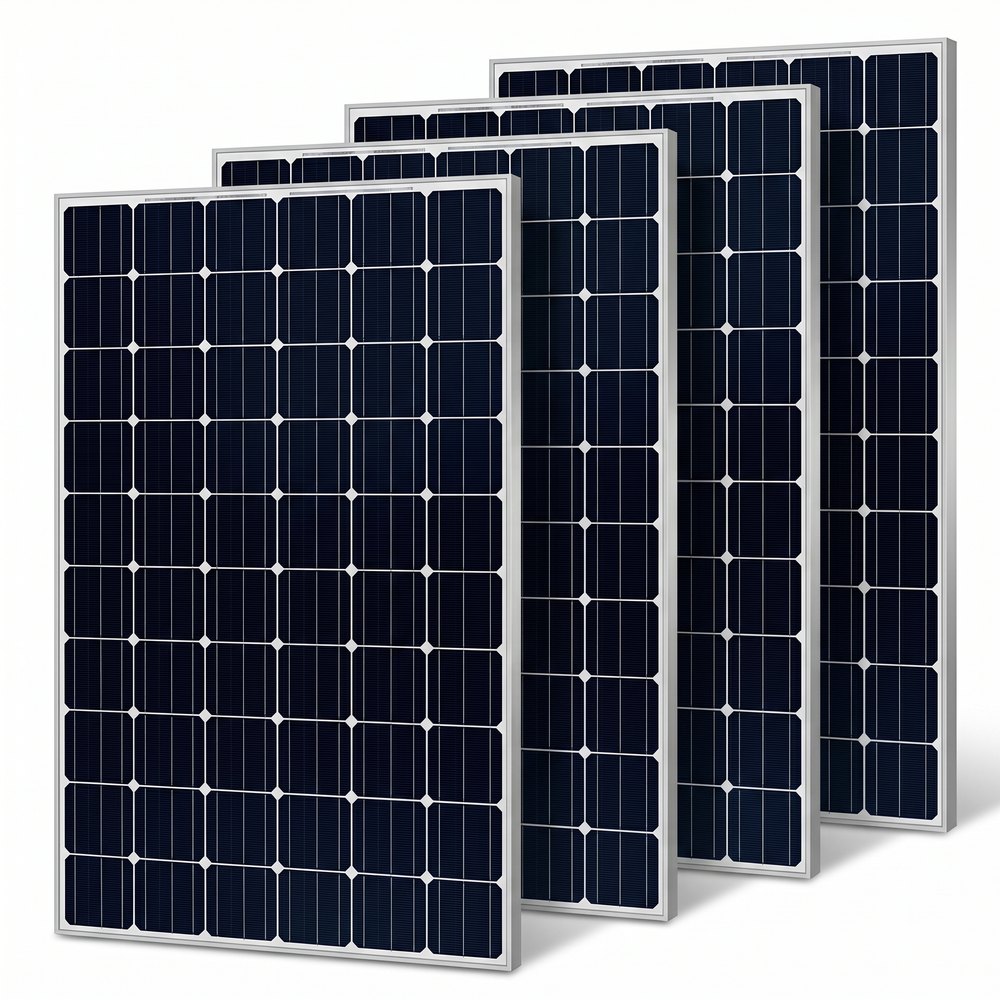

Monocrystalline Solar Panel — AXION by Arab Tower
AXION by Arab TowerSolar Panels

Monocrystalline Solar Panel

ANM Series · 50W to 360W

High Efficiency Monocrystalline Cells — up to 22% module conversion rate for maximum power output per square metre

Request a Quotation Download Datasheet
Power Range
50–360 W
Module Efficiency
22 %
Junction Box Rating
IP67
Models Available
7 models
Technical Specification

Key Features

  • High Efficiency Monocrystalline Cells — up to 22% module conversion rate for maximum power output per square metre
  • Wide Power Range — 50W to 360W across 7 models for off-grid, rooftop, rural and commercial applications
  • IP67 Rated Junction Box — sealed against moisture and dust for long-term outdoor reliability
  • 12V and 24V System Compatibility — 18V panels for 12V battery systems, 36V panels for 24V and grid-connected systems
  • Compact to Full-Size Options — from portable 670×400mm panels to full-size 1680×880mm modules

Technical Specifications

Cell TypeMonocrystalline Silicon
Module EfficiencyUp to 22%
Junction BoxIP67 Rated

Model Range

SpecificationANM-60WANM-100WANM-150W
Pm50W100W150W
Vmp18V18V18V
Imp2.78A5.56A8.33A
Voc21.8V20.5V21.3V
Isc2.91A6.25A9.02A

Model Range

SpecificationANM-200WANM-250WANM-300WANM-360W
Pm200W250W300W360W
Vmp22.5V36V36V36V
Imp8.89A6.94A8.33A10.00A
Voc26.6V43V41.5V41V
Isc9.42A7.35A9.26A11.15A

Specify the Monocrystalline Solar Panel for your project

AXION solar & storage, supplied and engineered into your system by Arab Tower — across the UAE and internationally.
