N-Type Bifacial Dual Glass Solar Panel — AXION by Arab Tower
AXION by Arab TowerSolar Panels

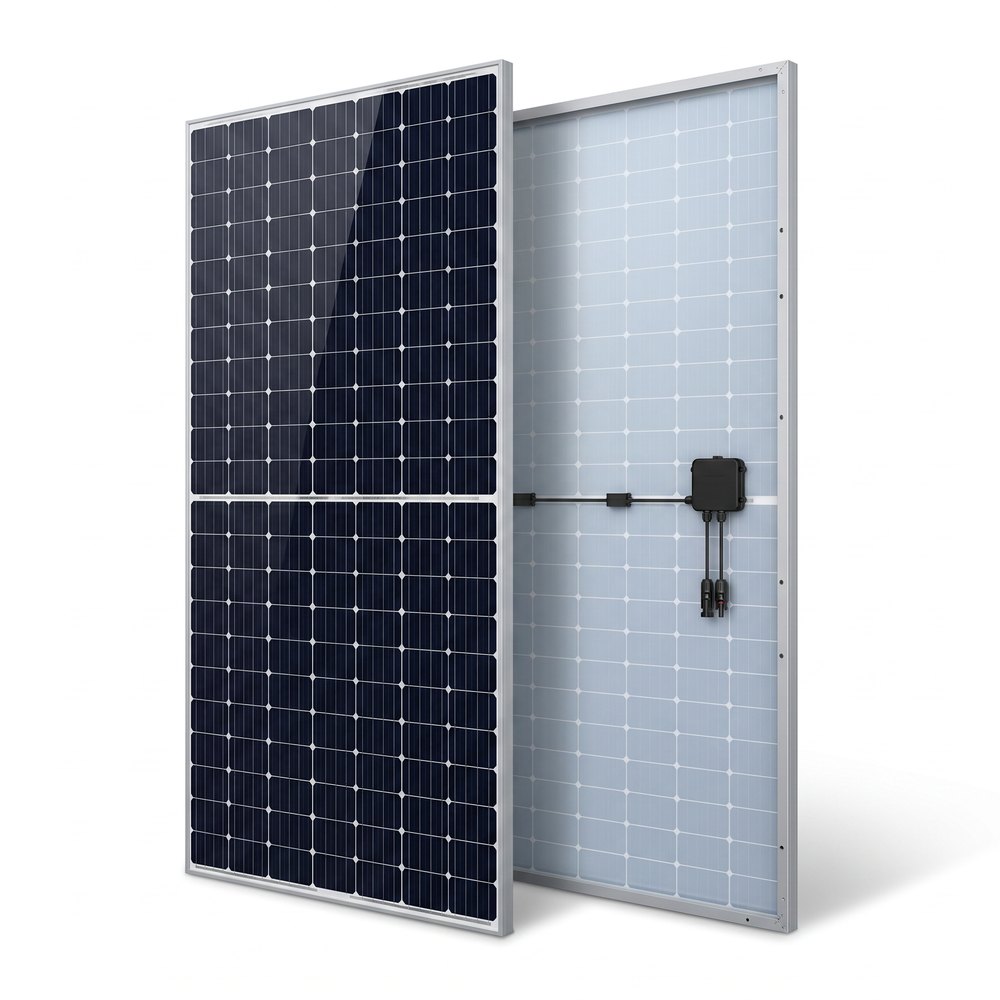

N-Type Bifacial Dual Glass Solar Panel

AX-PNL Series · 430W / 580W

N-Type mono-crystalline half-cut cells — 3.9% higher average power output than P-Type modules

Power Range (Pmax)
430–580 W
Max Cell Efficiency
22.45 %
Bifacial Power Gain (up to)
20 %
Panel Range
2 models
Technical Specification

Key Features

  • N-Type mono-crystalline half-cut cells — 3.9% higher average power output than P-Type modules
  • Bifacial dual glass construction — absorbs sunlight from both front and rear sides for up to 20% power gain
  • Glass-to-glass encapsulation (2.0mm tempered glass) — superior durability against sand, humidity and salt mist
  • 22.45% max cell efficiency — latest generation N-Type technology for maximum energy harvest
  • 430W and 580W options — residential rooftop (430W) to commercial ground-mount (580W)
  • Low degradation: 0.40% per year over 30 years — long-term stable power production
  • 12-year manufacturing warranty · 25-year linear power production guarantee (90%/12yr · 80%/25yr)

Technical Specifications

ParameterSpecification
Cell TypeN-Type Mono-crystalline Bifacial Half-Cut
EncapsulationGlass / EVA / Cell / EVA / Glass (Dual Glass)
Tolerance0 ~ +3%
Module Size (ND-430W)1722 × 1134 × 30mm
Module Size (ND-580W)2278 × 1134 × 30mm
Junction Box Protection≥IP67
Max System Voltage1500V
FrameAnodized Aluminium Alloy · 40/45/50mm
Operating Temperature−40°C to +85°C

Model Range

ModelPmaxVmpImpVocIsc
ND-430W430W31.88V13.49A38.49V14.23A
ND-580W580W42.59V13.62A51.47V14.37A

Specify the N-Type Bifacial Dual Glass Solar Panel for your project

AXION solar & storage, supplied and engineered into your system by Arab Tower — across the UAE and internationally.
