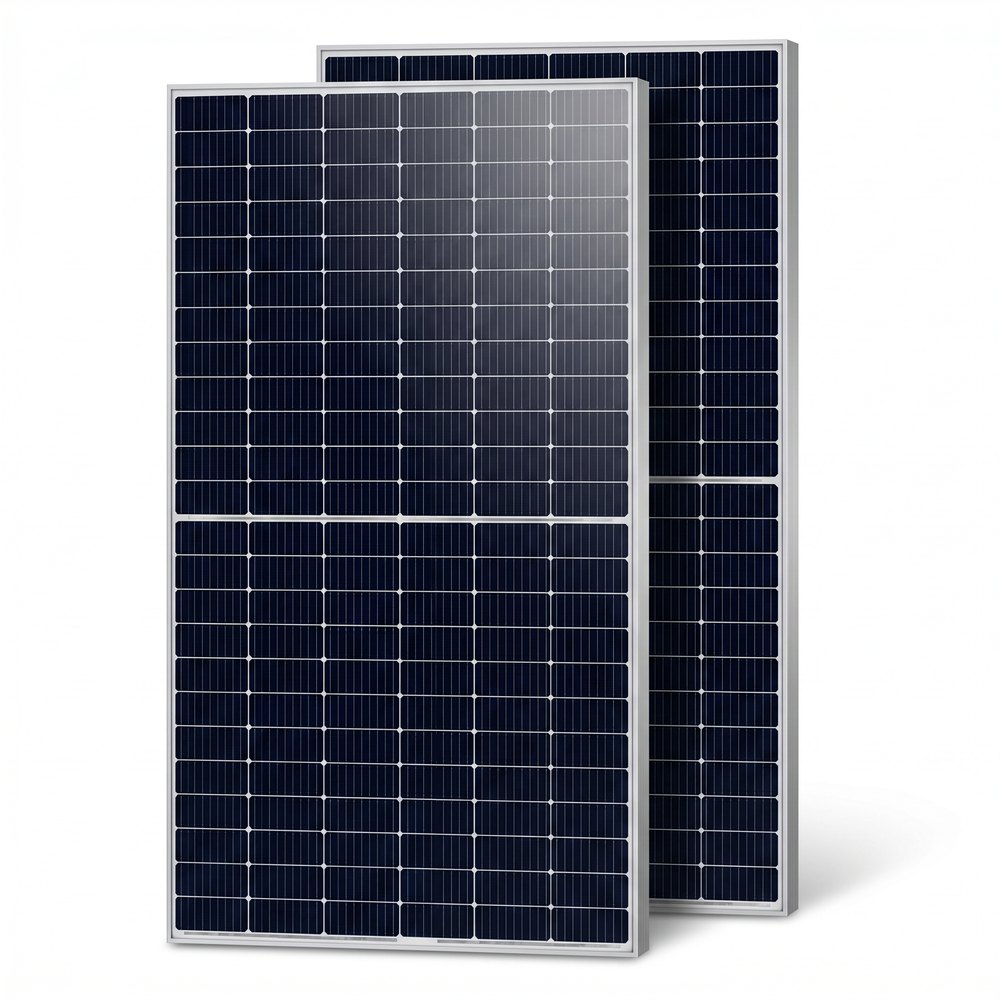

P-Type Half-Cut Mono Solar Panel — AXION by Arab Tower
AXION by Arab TowerSolar Panels

P-Type Half-Cut Mono Solar Panel

AX-PNL Series · 400W to 550W

P-Type mono-crystalline half-cut cell technology — reduced internal power loss to 1/4 vs standard cells

Request a Quotation Download Datasheet
Power Range (Pmax)
400–550 W
Max Cell Efficiency
22 %
Junction Box Protection
IP67
Panel Range
4 models
Technical Specification

Key Features

  • P-Type mono-crystalline half-cut cell technology — reduced internal power loss to 1/4 vs standard cells
  • High-density encapsulation — improved module efficiency and reliability for harsh environments
  • 400W to 550W power range — flexible sizing from residential rooftop to commercial ground-mount
  • Full Black option available (400W) — premium aesthetic for architectural and residential installations
  • Anodized aluminium alloy frame with MC4 plug-and-play connectors — fast installation, long service life
  • 5400 Pa snow load / 2400 Pa wind load rating — engineered for extreme weather conditions
  • 12-year manufacturing warranty · 25-year linear power production guarantee (90%/12yr · 80%/25yr)

Technical Specifications

ParameterSpecification
Cell TypeP-Type Mono-crystalline Half-Cut
Tolerance0 ~ +3%
Module Size (G400W / G410W)1722 × 1134 × 30mm
Module Size (G460W)1909 × 1134 × 30mm
Module Size (G550W)2278 × 1134 × 30/35mm
Junction Box Protection≥IP67
Max System Voltage1500V
FrameAnodized Aluminium Alloy · 40/45/50mm
Operating Temperature−40°C to +85°C

Model Range

ModelPmaxVmpImpVocIsc
G400W400W31.00V12.91A37.00V13.60A
G410W410W31.30V13.10A37.30V13.79A
G460W460W35.07V13.12A41.55V14.05A
G550W550W42.00V13.12A49.80V13.98A

Specify the P-Type Half-Cut Mono Solar Panel for your project

AXION solar & storage, supplied and engineered into your system by Arab Tower — across the UAE and internationally.
