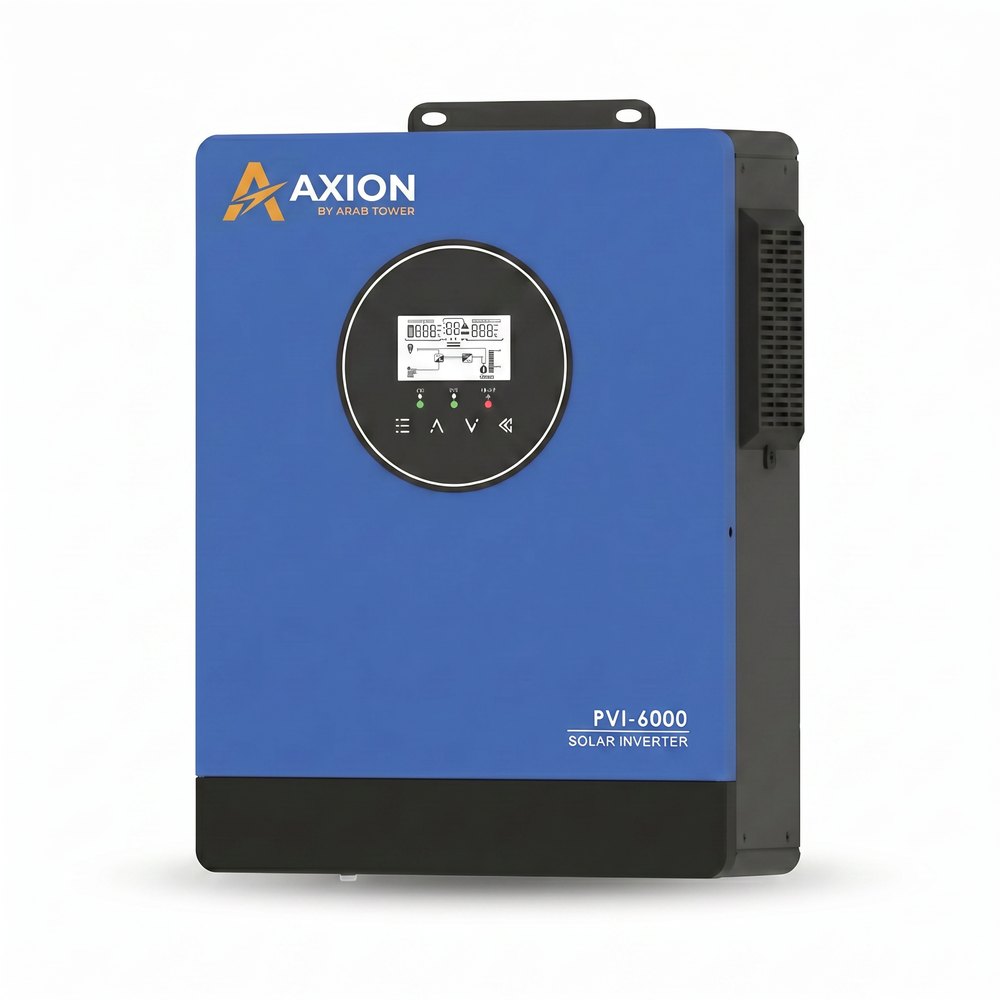

Multi-MPPT Hybrid Solar Inverter — AXION by Arab Tower
AXION by Arab TowerSolar Inverters

Multi-MPPT Hybrid Solar Inverter

AX-PVI Series · 6kW / 10kW

Pure sine wave output with power factor >0.99 — clean power for sensitive equipment and appliances

Request a Quotation Download Datasheet
Rated Power Range
6–10 kW
Max Conversion Efficiency
97 %
MPPT Trackers (max)
3 ×
Max PV Input Voltage
500 Vdc
Technical Specification

Key Features

  • Pure sine wave output with power factor >0.99 — clean power for sensitive equipment and appliances
  • Multi-MPPT technology: dual trackers (6kW), triple trackers (10kW) — maximises solar energy capture
  • Grid-tie and off-grid operation — configurable via LCD for on-grid or standalone applications
  • 97% maximum DC/AC conversion efficiency — minimal energy loss from panel to load
  • Cold start function — system starts directly from solar without grid or battery
  • Motor starting capability: 3P AC motor (6kW) / 1.5P+3P AC motor (10kW)
  • WiFi monitoring · RS232 · CAN communication — remote system monitoring via mobile app

Technical Specifications

ParameterSpecification
Max DC Voltage500Vdc
MPPT Voltage Range60–450Vdc
Nominal Output Voltage220 / 230 / 240VAC
Output Voltage Range184–264.5 / 195.5–253 / 184–264.4VAC (Selectable)
Power Factor>0.99
Max Conversion Efficiency97%
Phase1-phase in / 1-phase out
Frequency50Hz / 60Hz (Auto sensing)
IP RatingIP21

Model Range

ModelRated PowerMax PV InputMPPT / InputOutput CurrentAC Input
PVI-60006KVA / 6KW9,000W2 / 18A26A40A
PVI-1000010KVA / 10KW13,500W3 / 18A43A50A

Specify the Multi-MPPT Hybrid Solar Inverter for your project

AXION solar & storage, supplied and engineered into your system by Arab Tower — across the UAE and internationally.
