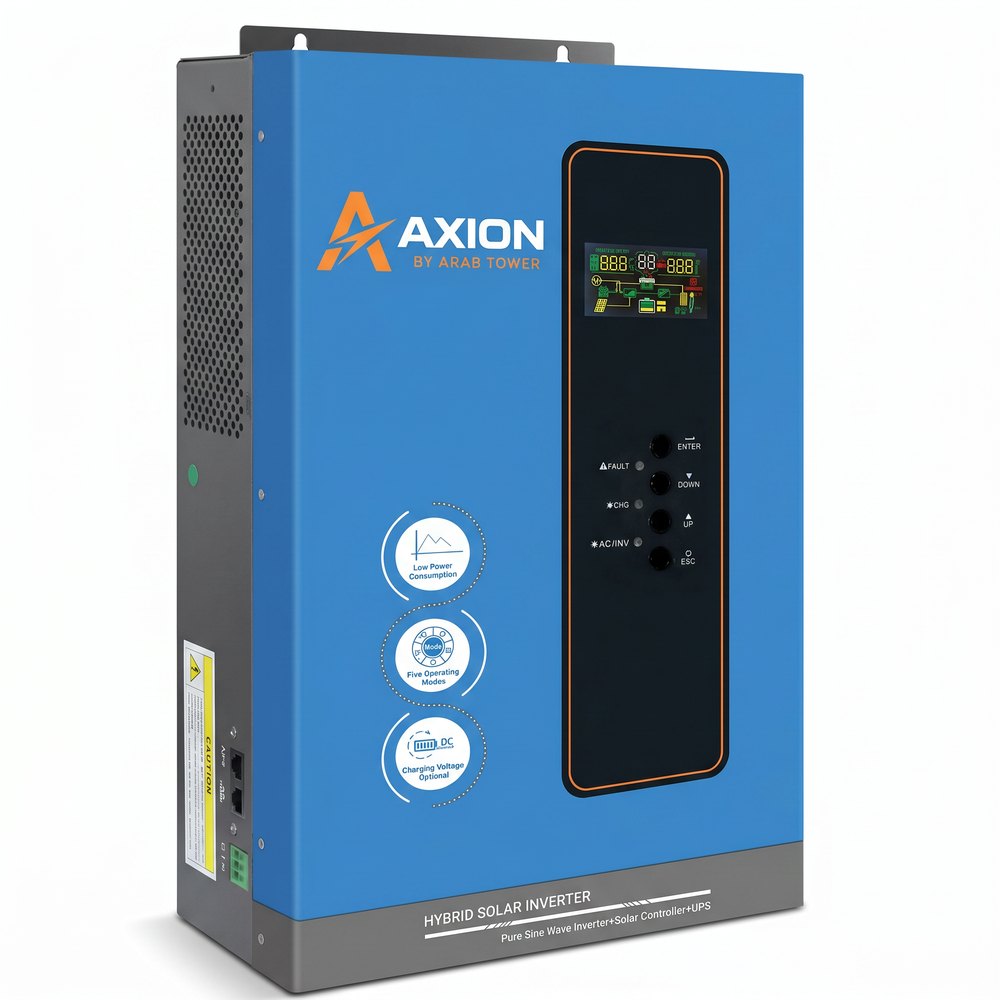

Low Frequency Hybrid Solar Inverter with MPPT — AXION by Arab Tower
AXION by Arab TowerSolar Inverters

Low Frequency Hybrid Solar Inverter with MPPT

WSPI Series · 3kW & 5kW

Built-in MPPT Solar Charge Controller — up to 120A charge current as standard, not optional

Request a Quotation Download Datasheet
Power Range
3–5 kW
Max MPPT Charge
120 A
Max PV Voltage
150 V
Operating Modes
5
Technical Specification

Key Features

  • Built-in MPPT Solar Charge Controller — up to 120A charge current as standard, not optional
  • Low Frequency Transformer Design — pure sine wave output for all inductive loads including compressors and motors
  • Five Selectable Operating Modes — flexible switching between mains, battery, solar, energy-saving and generator priority
  • Generator Compatible — wide-frequency wide-voltage AC input for diesel and gasoline generator connection
  • Integrated UPS Function — seamless backup power with automatic transfer for critical equipment

Technical Specifications

ParameterSpecification
Output Voltage220VAC ±10%
Output Frequency50Hz / 60Hz ±1%
Output WaveformPure Sine Wave
MPPT ControllerBuilt-in (standard)
Generator CompatibleWide-frequency, wide-voltage input
Battery Options8 preset voltages including Li-Ion
UPS FunctionIntegrated backup power

Model Range

SpecificationWSPI-3000WWSPI-5000W
Rated Power3,000W5,000W
DC Input Voltage24V48V
Max PV Input1,600W6,400W
PV Voltage Range30–150VDC60–150VDC
MPPT Charge Current60A120A

Specify the Low Frequency Hybrid Solar Inverter with MPPT for your project

AXION solar & storage, supplied and engineered into your system by Arab Tower — across the UAE and internationally.
