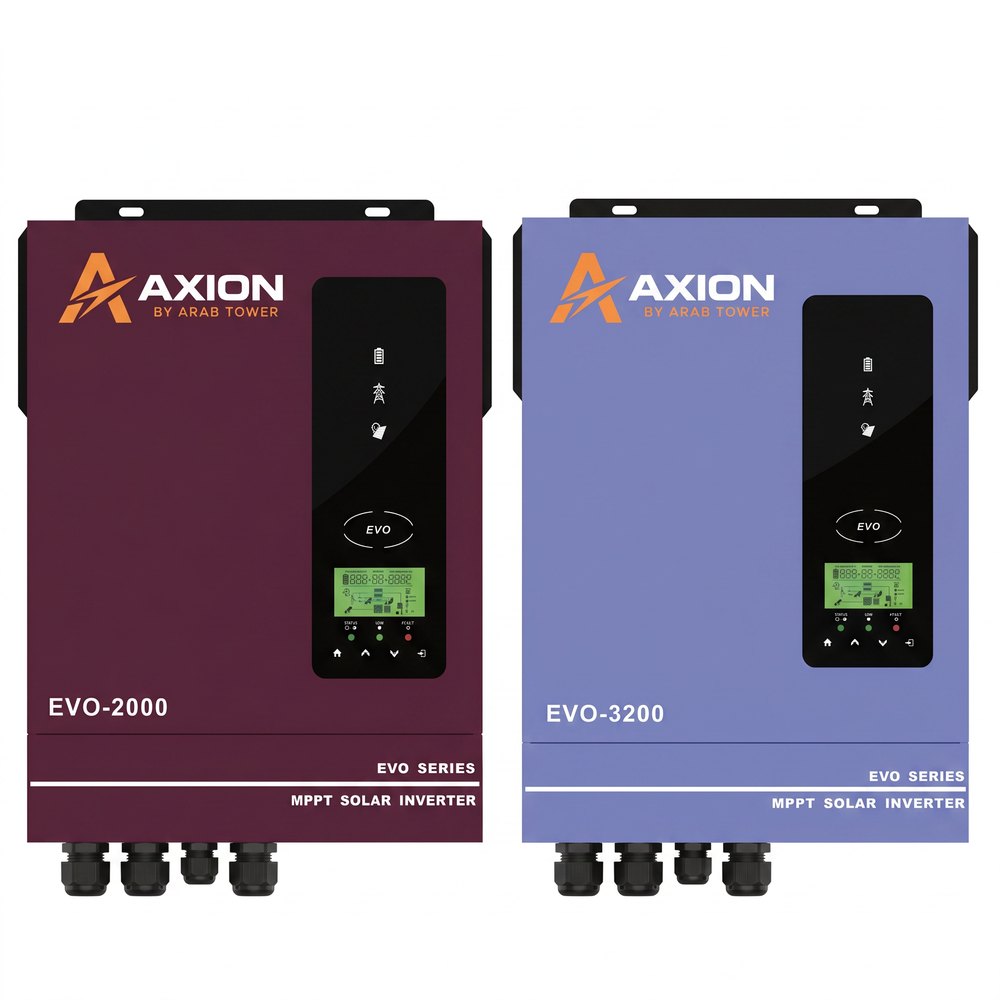

Off-Grid Hybrid Solar Inverter — AXION by Arab Tower
AXION by Arab TowerSolar Inverters

Off-Grid Hybrid Solar Inverter

AX-EVO Series · 2kW to 3.2kW

Pure sine wave output with unity power factor (PF 1.0) — clean power for sensitive equipment

Request a Quotation Download Datasheet
Rated Power Range
2–3.2 kW
Peak Efficiency (PV to Inverter)
98 %
Built-in MPPT Solar Charger
80 A
Ingress Protection Rating
IP21
Technical Specification

Key Features

  • Pure sine wave output with unity power factor (PF 1.0) — clean power for sensitive equipment
  • Built-in 80A MPPT solar charge controller — eliminates need for external controller
  • Wide PV input voltage range 30–400VDC — fewer panels required to reach operating voltage
  • 98% peak efficiency (PV to inverter) — maximises solar energy harvest
  • Smart battery charge design with lithium battery compatibility — optimises battery lifespan
  • Built-in anti-dust kit for harsh environment operation — suitable for desert and industrial sites
  • WiFi and RS232/GPRS communication — remote monitoring via iOS and Android

Technical Specifications

ParameterSpecification
AC Input Voltage230VAC
Selectable Input Range170–280VAC (PC) · 90–280VAC (Appliances)
AC Output230VAC ±5% · Pure Sine Wave
Frequency50/60Hz (Auto sensing)
MPPT Voltage Range30–400VDC
Max PV Open Circuit Voltage400VDC
Transfer Time10ms (PC) · 20ms (Appliances)
Efficiency (Battery to INV)94%
CertificationsCE · RoHS

Model Range

ModelRated PowerSurge PowerBattery VMax PVMax Charge
EVO-20002000VA / 1600W4000VA12VDC2000W80A
EVO-32003200VA / 3000W6400VA24VDC3000W80A

Specify the Off-Grid Hybrid Solar Inverter for your project

AXION solar & storage, supplied and engineered into your system by Arab Tower — across the UAE and internationally.
