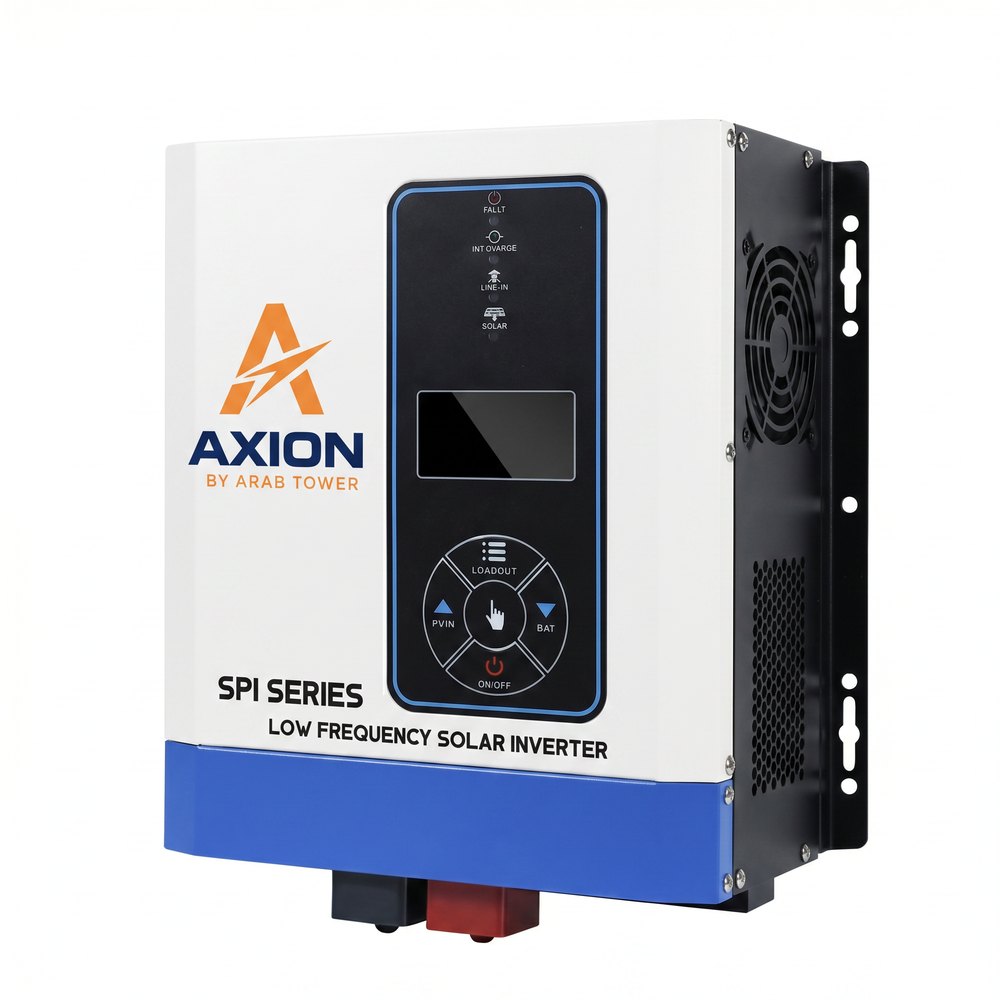

Low Frequency Pure Sine Wave Solar Inverter — AXION by Arab Tower
AXION by Arab TowerSolar Inverters

Low Frequency Pure Sine Wave Solar Inverter

SPI Series · 2kW to 12kW

Low Frequency Transformer — 3× surge capacity for all inductive loads including compressors, pumps and motors

Request a Quotation Download Datasheet
Power Range
2–12 kW
Peak Surge Rating
3×
Transfer Time
8 ms
Battery Voltage Range
24–96 V
Technical Specification

Key Features

  • Low Frequency Transformer — 3× surge capacity for all inductive loads including compressors, pumps and motors
  • Optional Built-in MPPT Solar Charge Controller — 50A to 240A selectable, >98% tracking efficiency
  • DSP Intelligent Control — multiple priority modes: Mains, Battery, Energy Saving, Generator
  • Pure Sine Wave Output — safe for sensitive electronics and heavy-duty industrial equipment
  • UPS Function with 8ms Transfer — automatic switching between grid, solar and battery power

Technical Specifications

ParameterSpecification
Output WaveformPure Sine Wave
Output Voltage220/240VAC ±10%
Output Frequency50Hz / 60Hz (±0.3Hz)
Inverter Efficiency (Peak)>85%
AC Mode Efficiency>95%
Transfer Time (AC to DC)8ms (max)
Battery TypeAGM · Lead Acid · Lithium · Ternary
Input Frequency50Hz / 60Hz (auto sensing)
Optional MPPT Controller50A–240A · >98% Efficiency

Model Range

SpecificationSPI-2000WSPI-3000WSPI-5000W
Rated Power2,000W3,000W5,000W
Surge (20ms)6,000W9,000W15,000W
Battery Voltage24/48VDC24/48VDC24/48VDC
AC Charge20A30A40A
Net Weight16 kg18 kg27 kg

Model Range

SpecificationSPI-6000WSPI-8000WSPI-10000WSPI-12000W
Rated Power6,000W8,000W10,000W12,000W
Surge (20ms)18,000W24,000W30,000W36,000W
Battery Voltage48/96VDC48/96VDC48/96VDC48/96VDC
AC Charge50A50A50A50A
Net Weight30 kg32 kg45 kg50 kg

Specify the Low Frequency Pure Sine Wave Solar Inverter for your project

AXION solar & storage, supplied and engineered into your system by Arab Tower — across the UAE and internationally.
