MPPT Solar Charge Controller

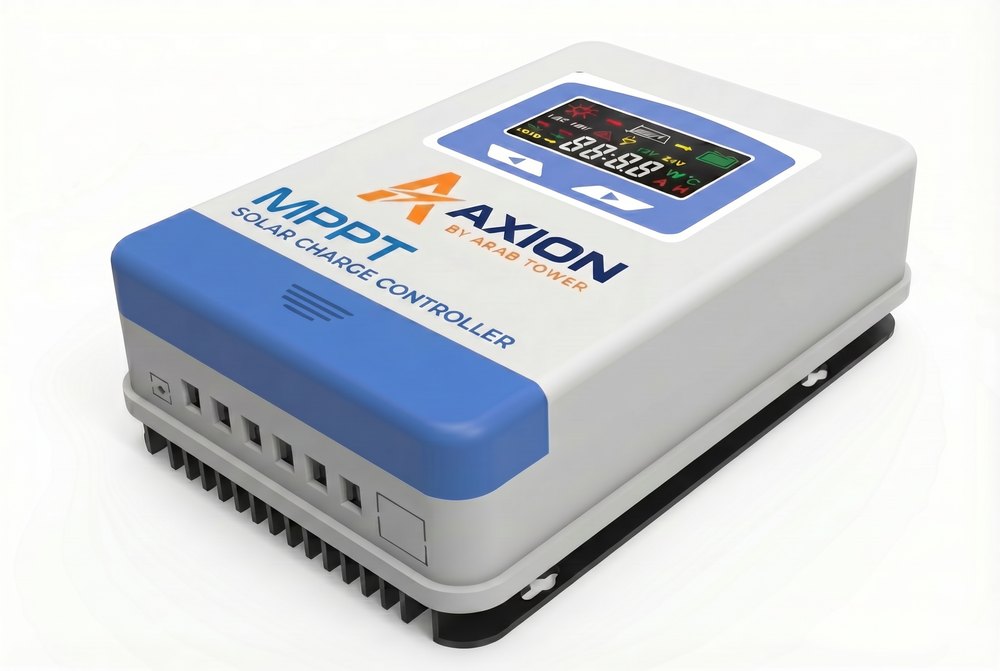

Name: AXION MPPT Solar Charge Controller
Brand: AXION by Arab Tower

MSC Series · 20A to 140A

MPPT tracking efficiency up to 99.5% — 5 to 30% more output vs PWM controllers

Request a Quotation Download Datasheet

Charge Current Range

20–140 A

MPPT Tracking Efficiency

99.5 %

Auto System Voltage ID

12/24/48 V

System Efficiency

97 %

Technical Specification

Key Features

MPPT tracking efficiency up to 99.5% — 5 to 30% more output vs PWM controllers
Automatic 12V / 24V / 48V system voltage identification
Compatible with Sealed, GEL, Flooded, LiFePO4 and Lithium NMC batteries
Built-in and external Bluetooth for remote monitoring and configuration
Colour LCD display with real-time PV, battery and load data
4 programmable working modes: Regular, Light Control, Light+Time, Reverse
Comprehensive protection: overcharge, over-discharge, short circuit, reverse polarity

Model Range

Model	DC Voltage	Charge Current	Max PV Input
AX-MSC-20A	12 / 24V	20A	60V
AX-MSC-30A	12 / 24V	30A	75V
AX-MSC-40A	12 / 24V	40A	100V
AX-MSC-60A	12 / 24 / 48V	60A	150V
AX-MSC-80A	12 / 24 / 48V	80A	150V
AX-MSC-100A	12 / 24 / 48V	100A	150V
AX-MSC-140A-24	24V	140A	450V
AX-MSC-140A-48	48V	140A	450V

Specify the MPPT Solar Charge Controller for your project

AXION solar & storage, supplied and engineered into your system by Arab Tower — across the UAE and internationally.
