Wall-Mounted / Floor-Standing LiFePO4 Lithium Battery — AXION by Arab Tower
AXION by Arab TowerBattery Storage

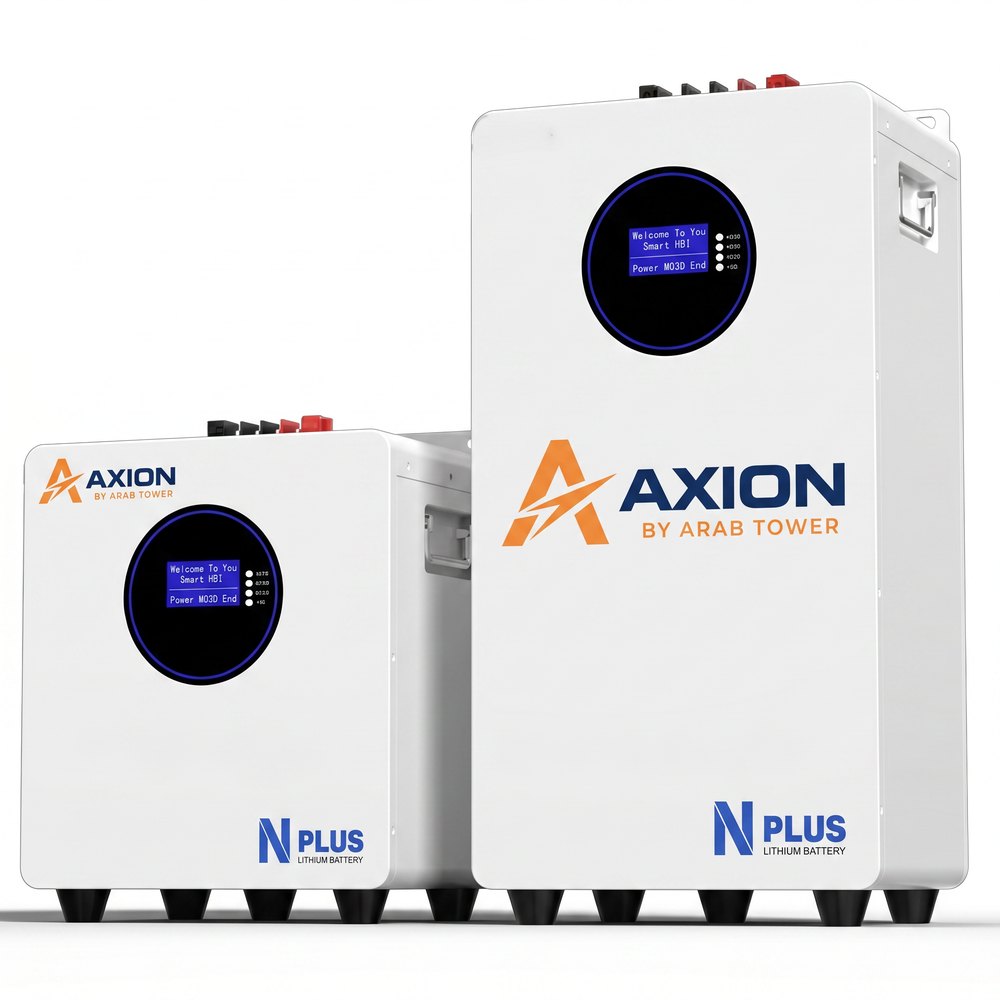

Wall-Mounted / Floor-Standing LiFePO4 Lithium Battery

LPB-Nplus Series · 25.6V & 51.2V

Wall-Mounted & Floor-Standing Options — flexible installation for residential and commercial applications

Request a Quotation Download Datasheet
Energy Storage
5–15 kWh
Protection Rating
IP54
Max Cycle Life
10,000
Max Discharge
200 A
Technical Specification

Key Features

  • Wall-Mounted & Floor-Standing Options — flexible installation for residential and commercial applications
  • Advanced Active Cell Balancing — built-in BMS with multi-level energy consumption management for optimised battery health
  • Multiple Parallel Expansion — automatic address acquisition, no manual configuration for seamless capacity scaling
  • Triple Communication Interface — RS232, RS485 and CAN for seamless integration with all major inverter brands
  • High Current Capability — up to 150A charge and 200A discharge with front-accessible wiring for easy installation

Technical Specifications

ParameterSpecification
Battery ChemistryLiFePO4
Standard Charge0.5C
Charge Temperature0°C to +55°C
Discharge Temperature−20°C to +60°C
Storage Temperature−20°C to +40°C
SOC Accuracy<8%
Protection RatingIP54
CommunicationRS232 · RS485 · CAN
CertificationsCE · ROHS · UN38.3 · MSDS

Model Range

SpecificationN-24200Nplus-48100Nplus-48200Nplus-48300
Capacity200Ah100Ah200Ah300Ah
Voltage25.6V51.2V51.2V51.2V
Energy Storage5kWh5kWh10kWh15kWh
Voltage Range22.4–29.2V44.8–58.4V44.8–58.4V44.8–58.4V
Max Charge100A50A100A150A
Max Discharge200A100A200A200A
Cycle Life5,0005,0005,00010,000

Specify the Wall-Mounted / Floor-Standing LiFePO4 Lithium Battery for your project

AXION solar & storage, supplied and engineered into your system by Arab Tower — across the UAE and internationally.
