Rack LiFePO4 Lithium Battery — AXION by Arab Tower
AXION by Arab TowerBattery Storage

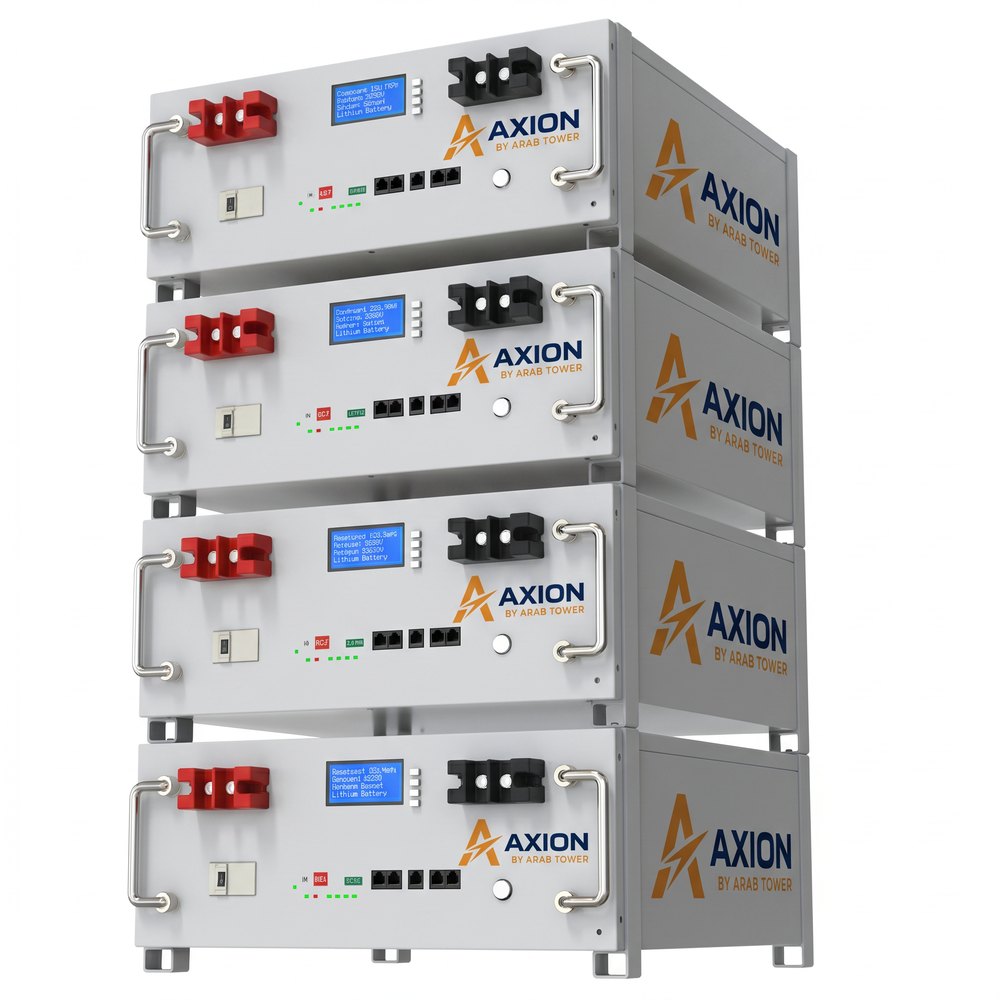

Rack LiFePO4 Lithium Battery

LPB-R Series · 25.6V & 48V

Modular Rack-Mount Design — compact stackable modules for server rack or cabinet installation

Request a Quotation Download Datasheet
Energy Storage
5.1–9.6 kWh
Protection Rating
IP54
Battery Chemistry
LiFePO4
Max Discharge
150 A
Technical Specification

Key Features

  • Modular Rack-Mount Design — compact stackable modules for server rack or cabinet installation
  • Front Operation & Wiring — all connections and controls accessible from the front for easy installation and maintenance
  • Multiple Parallel Connection — automatic address acquisition, no manual configuration required for parallel expansion
  • High Current Capability — up to 100A charge and 150A discharge for demanding solar and UPS applications
  • Built-in BMS with LCD Display — real-time monitoring of voltage, current, temperature and state of charge

Technical Specifications

ParameterSpecification
Battery ChemistryLiFePO4
Standard Charge0.5C
Charge Temperature0°C to +55°C
Discharge Temperature−20°C to +60°C
Storage Temperature−20°C to +40°C
SOC Accuracy<8%
Protection RatingIP54
CoolingNatural Convection
CertificationsCE · ROHS · UN38.3 · MSDS

Model Range

SpecificationLPB-R-24200LPB-R-48100LPB-R-48200
Capacity200Ah100Ah200Ah
Voltage25.6V48V48V
Energy Storage5.12kWh4.8kWh9.6kWh
Voltage Range22.4–29.2V42–54.8V42–54.8V
Max Charge100A50A100A
Max Discharge150A100A150A

Specify the Rack LiFePO4 Lithium Battery for your project

AXION solar & storage, supplied and engineered into your system by Arab Tower — across the UAE and internationally.
