25.6V / 51.2V LiFePO4 Solar Battery — AXION by Arab Tower
AXION by Arab TowerBattery Storage

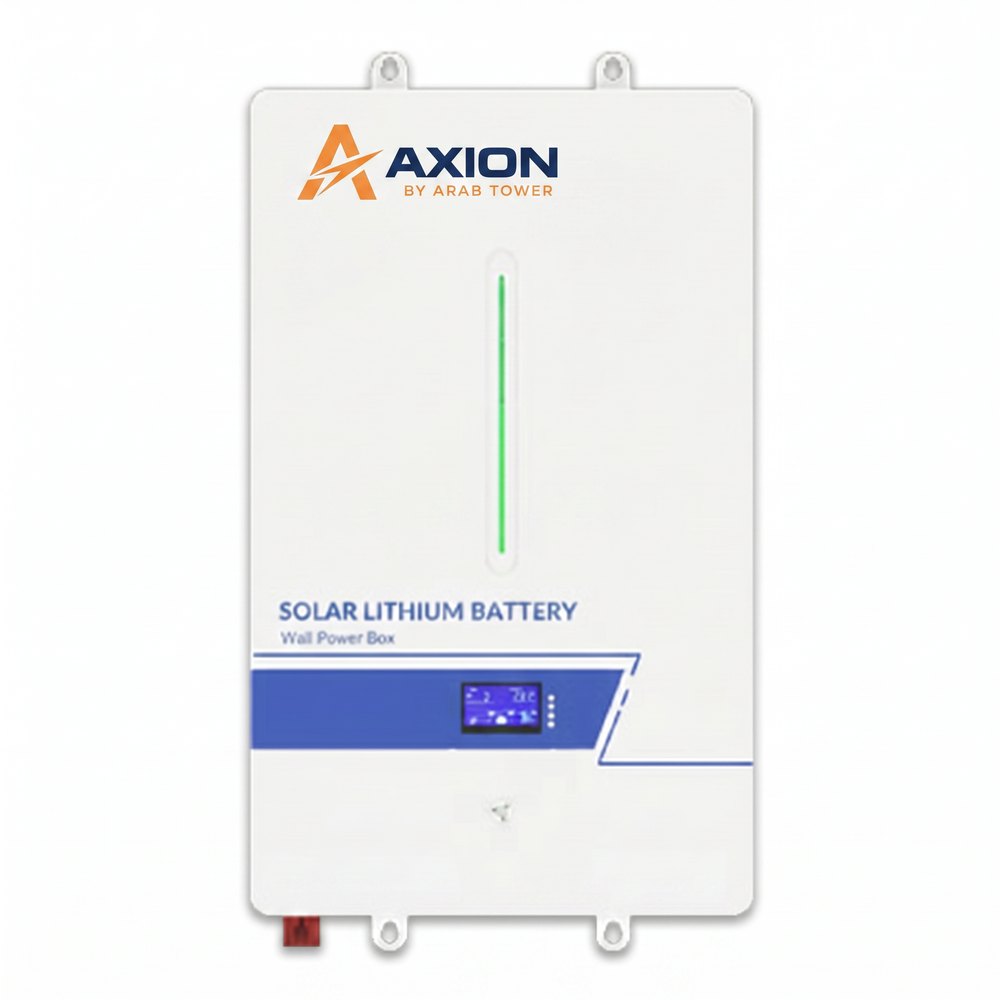

25.6V / 51.2V LiFePO4 Solar Battery

AX-LPB-N Series · 2.5kWh to 15kWh

6,000+ cycle life with 8+ year service life — A-grade LiFePO4 cells with 1C charge and 1.5C discharge capability

Energy Storage Range
2.5–15 kWh
Cycle Life (Charge / Discharge)
6,000+
Parallel Connection (max)
15
Ingress Protection Rating
IP54
Technical Specification

Key Features

  • 6,000+ cycle life with 8+ year service life — A-grade LiFePO4 cells with 1C charge and 1.5C discharge capability
  • Supports up to 15 batteries in parallel — automatic address acquisition, no manual configuration required
  • Smart BMS with real-time monitoring — automated management of each battery unit for safe and reliable operation
  • Multiple communication interfaces: RS232, CAN, RS485 — seamless integration with energy storage inverters
  • LCD display with LED status indicators — real-time monitoring of voltage, current, SOC and temperature
  • Wall-mounted and floor-standing installation options — modular design, compact and lightweight
  • Certified to CE, RoHS, UN38.3 and MSDS standards

Technical Specifications

ParameterSpecification
Battery ChemistryLithium Iron Phosphate (LiFePO4)
Standard Charge Current1C
Voltage Range22.4–29.2V (25.6V) · 44.8–58.4V (51.2V)
SOC Accuracy<8%
Charge Temperature0°C to +55°C
Discharge Temperature−20°C to +60°C
Storage Temperature−20°C to +40°C
IP RatingIP54
CertificationsCE · RoHS · UN38.3 · MSDS

Model Range

ModelCapacityEnergyMax ChargeMax DischargeVoltage
N-24100100Ah2.5 kWh100A100A25.6V
N-24200200Ah5 kWh200A200A25.6V
N-48100100Ah5 kWh100A100A51.2V
N-48200200Ah10 kWh200A200A51.2V
N-48300300Ah15 kWh150A200A51.2V

Specify the 25.6V / 51.2V LiFePO4 Solar Battery for your project

AXION solar & storage, supplied and engineered into your system by Arab Tower — across the UAE and internationally.
