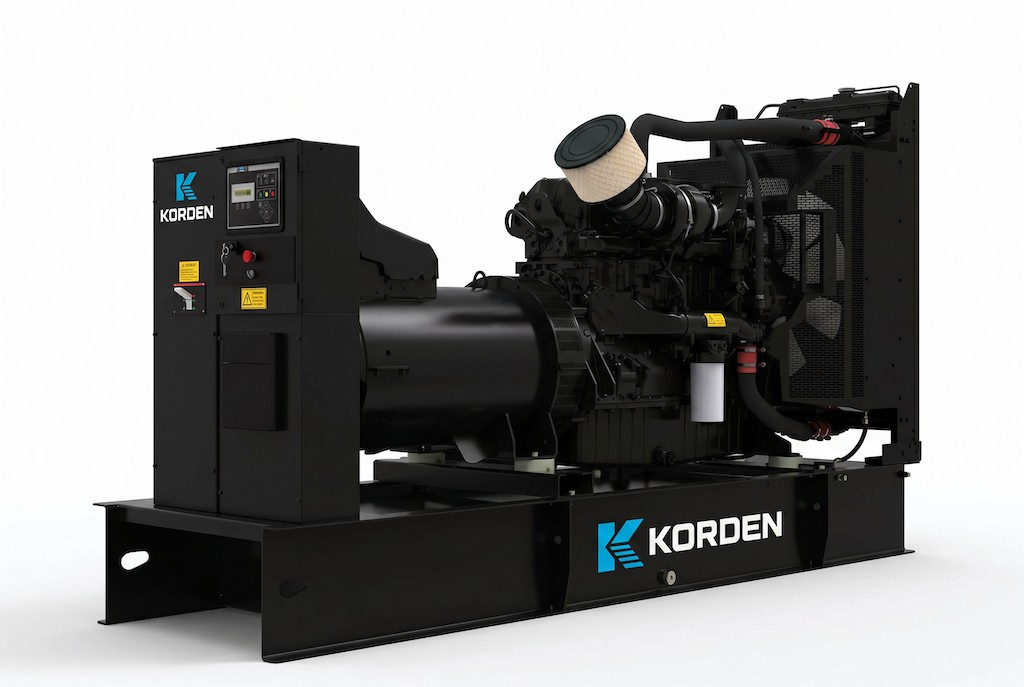

Diesel Generator Set450 kVA standby diesel generator set. Powered by Perkins 2206C-E13TAG3 with Leroy Somer TAL-047-A and Auto Mains Failure (AMF) control — supplied, installed, tested and commissioned.
| Standby kVA | 450 kVA |
| Standby kW | 360 kW |
| Standby Current | 650 A |
| Prime kVA | 400 kVA |
| Prime kW | 320 kW |
| Prime Current | 577 A |
| Frequency | 50 Hz |
| Voltage | 400/230V, 3-Phase |
| Power Factor | 0.8 lagging |
| Make & Model | Perkins 2206C-E13TAG3 |
| Cylinders | 6 In-Line |
| Displacement | 12.5 Liters |
| Bore & Stroke | 130 × 157 mm |
| Aspiration | Turbocharged & Aftercooled |
| Compression Ratio | 16.3:1 |
| Make & Model | Leroy Somer TAL-047-A |
| Options | Stamford HCI544C / Mecc Alte ECO43-1S |
| AVR | Digital R450 |
| Voltage Regulation | ±1% |
| Controller | Auto Mains Failure (AMF) |
| Controller Model | DSE 7320 MKII Co |
| Fuel Tank | 390 Liters |
| Runtime @ 100% Prime | 4.6 Hours |
| Cooling | Water-Cooled, Radiator Mounted |
| Max Ambient | 40°C |
| Coolant Capacity | 51 L |
| Oil Capacity | 40 L |
| Open Frame (L×W×H) | 3300×1150×2100 |
| Open Frame Weight | 3290 kg |
Enclosure, ATS, fuel system and controls configured to your specification.
