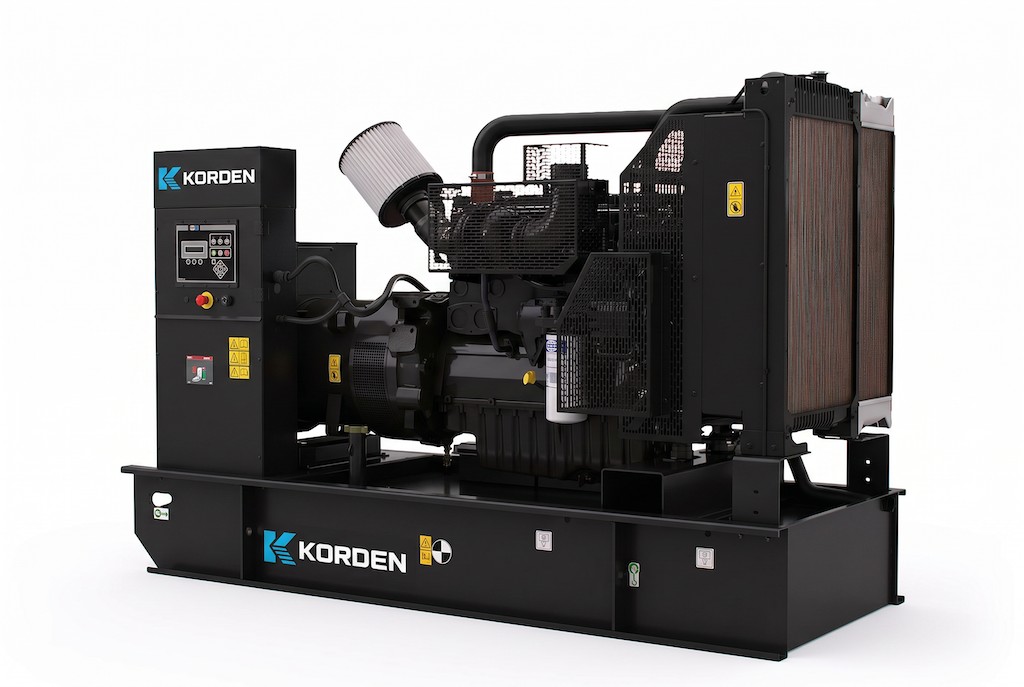

KORDEN · Diesel Generator Set

KDN-P330

Name: KDN-P330
Brand: Arab Tower

400 kVA standby diesel generator set. Powered by Perkins 2206A-E13TAG2 with Leroy Somer TAL046H and Auto Mains Failure (AMF) control — supplied, installed, tested and commissioned.

Request a Quotation Download Datasheet

Standby

400

kVA · 320 kW

Prime

350

kVA · 280 kW

Voltage

400/230V, 3-Phase

50 Hz · PF 0.8 lagging

Technical Specification

Power Ratings

Standby kVA	400 kVA
Standby kW	320 kW
Standby Current	577 A
Prime kVA	350 kVA
Prime kW	280 kW
Prime Current	505 A
Frequency	50 Hz
Voltage	400/230V, 3-Phase
Power Factor	0.8 lagging

Engine

Make & Model	Perkins 2206A-E13TAG2
Optional Engine	Cummins QSL9-G7
Cylinders	6 In-Line
Displacement	12.5 Liters
Bore × Stroke	130 × 157 mm
Aspiration	Turbocharged & Aftercooled

Alternator

Make & Model	Leroy Somer TAL046H
Options	Stamford HCI434E / Mecc Alte ECO40-3S
AVR	Digital R450
Voltage Regulation	±1%

Control & Fuel

Controller	Auto Mains Failure (AMF)
Controller Model	DSE 7320 MKII Co
Fuel Tank	390 Liters L
Runtime @ 75%	5.5 Hours
Cooling	Water-Cooled, Radiator Mounted
Max Ambient	40°C

Dimensions & Weight

Open Frame (L×W×H)	2785×1071×1818
Open Frame Weight	2228 kg
Silent Canopy (L×W×H)	4200×1500×2200
Silent Canopy Weight	4410 kg
