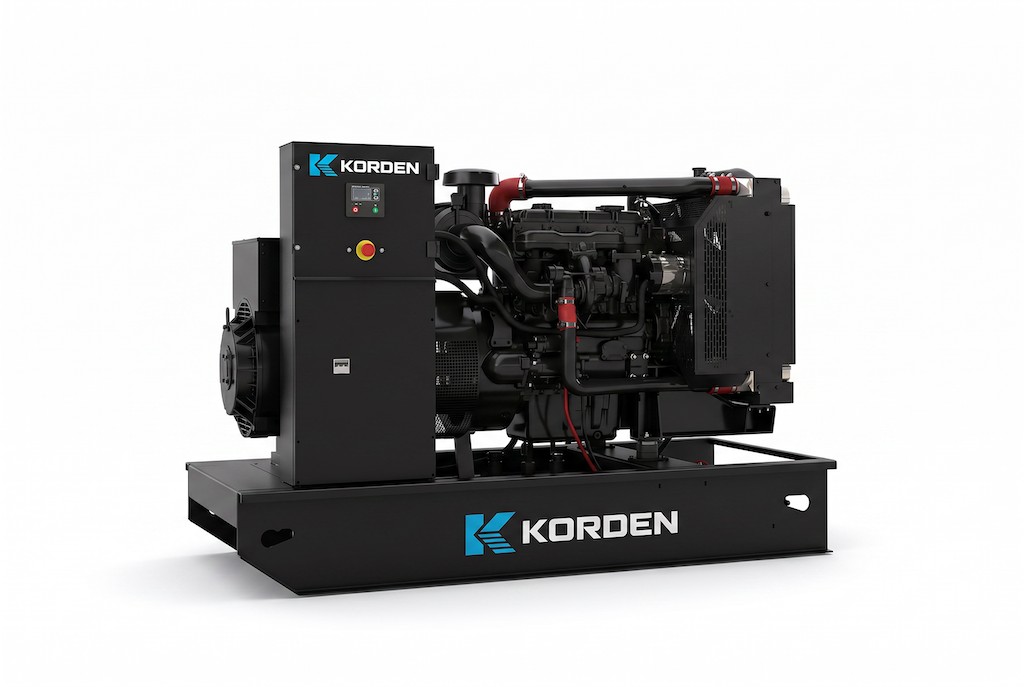

Diesel Generator Set33 kVA standby diesel generator set. Powered by Perkins 1103A-33G with Leroy Somer TAL-042-C and Auto Mains Failure (AMF) control — supplied, installed, tested and commissioned.
| Standby kVA | 33 kVA |
| Standby kW | 26 kW |
| Standby Current | 48 A |
| Prime kVA | 30 kVA |
| Prime kW | 24 kW |
| Prime Current | 43 A |
| Frequency | 50 Hz |
| Voltage | 400/230V, 3-Phase |
| Power Factor | 0.8 lagging |
| Make & Model | Perkins 1103A-33G |
| Cylinders | 3 In-Line |
| Displacement | 3.3 Liters |
| Aspiration | Naturally Aspirated |
| Make & Model | Leroy Somer TAL-042-C |
| Options | Stamford UCI224C / Mecc Alte ECP32-1S |
| AVR | Digital R450 |
| Voltage Regulation | ±1% |
| Controller | Auto Mains Failure (AMF) |
| Controller Model | DSE 7320 MKII Co |
| Fuel Tank | 90 Liters |
| Runtime @ 100% Prime | 12.5 Hours |
| Cooling | Water-Cooled, Radiator Mounted |
| Max Ambient | 40°C |
| Open Frame (L×W×H) | 1500×800×1250 |
| Open Frame Weight | 700 kg |
Enclosure, ATS, fuel system and controls configured to your specification.
