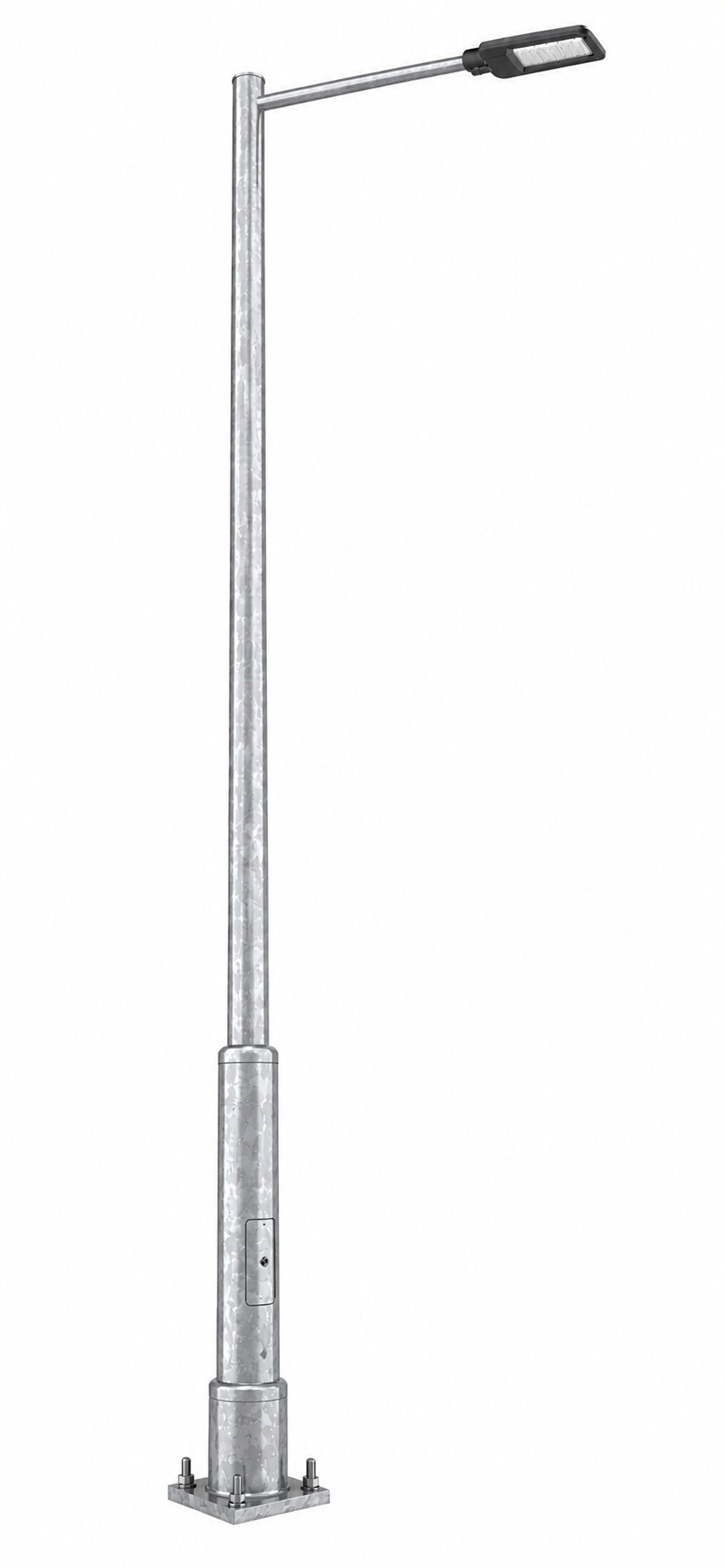

Lighting PolesTERRAPOST Step Taper Poles are engineered to BS EN 40 and manufactured from structural steel S355JR, hot-dip galvanised inside and out to BS EN ISO 1461. Designed for UAE wind conditions at 160 km/h, these poles deliver 25 years of structural performance.
| Parameter | Specification |
| Pole Type | Cylindrical Step Taper · Round Section |
| Material | Structural Steel S355JR · BS EN 10025 |
| Yield Strength | ≥ 355 N/mm² |
| Tensile Strength | 490–630 N/mm² |
| Design Standard | BS EN 40 |
| Wind Rating | 160 km/h · Gust Factor 1.14 |
| Wall Thickness | 3mm lower section · 2.5mm upper section |
| Sections | 2-Piece Telescopic · Slip-Fit Joint |
| Surface Finish | Hot-Dip Galvanised · Inside and out |
| Galvanising Standard | BS EN ISO 1461 |
| Zinc Coating | ≥ 86µm std · ≥ 100µm UAE authority |
| Hand Hole Position | 500mm above base plate |
| Hand Hole Cover | Weatherproof hinged · SS chain · Anti-tamper |
| Anchor Bolt Type | J-type HDG · L-type on request |
| Foundation Neck | 150mm above finished ground level |
| Arm Diameter | Ø60mm throughout |
| Arm Outreach | 1,000–2,000mm |
| Luminaire Capacity | Up to 1 luminaire · Up to 30kg per arm |
| Structural Warranty | 25 Years |
| Ht | Lower Ø | Upper Ø | Wall | Hand Hole | Base Plate | Anchor Bolts | Scts |
|---|---|---|---|---|---|---|---|
| 6m | 114 | 89 | 3mm | 400×100 | 250×250×10 | 4×M20×500 | 2 |
| 8m | 140 | 114 | 3mm | 400×140 | 300×300×15 | 4×M20×700 | 2 |
| 9m | 165 | 114 | 3mm | 500×140 | 300×300×15 | 4×M20×700 | 2 |
| 10m | 168 | 140 | 3mm | 500×140 | 300×300×15 | 4×M24×700 | 2 |
| 12m | 193 | 140 | 3mm | 500×140 | 300×300×20 | 4×M24×700 | 2 |
Hot-dip galvanised steel lighting poles to BS EN 40 — engineered, supplied and installed by Arab Tower across the UAE and internationally.
