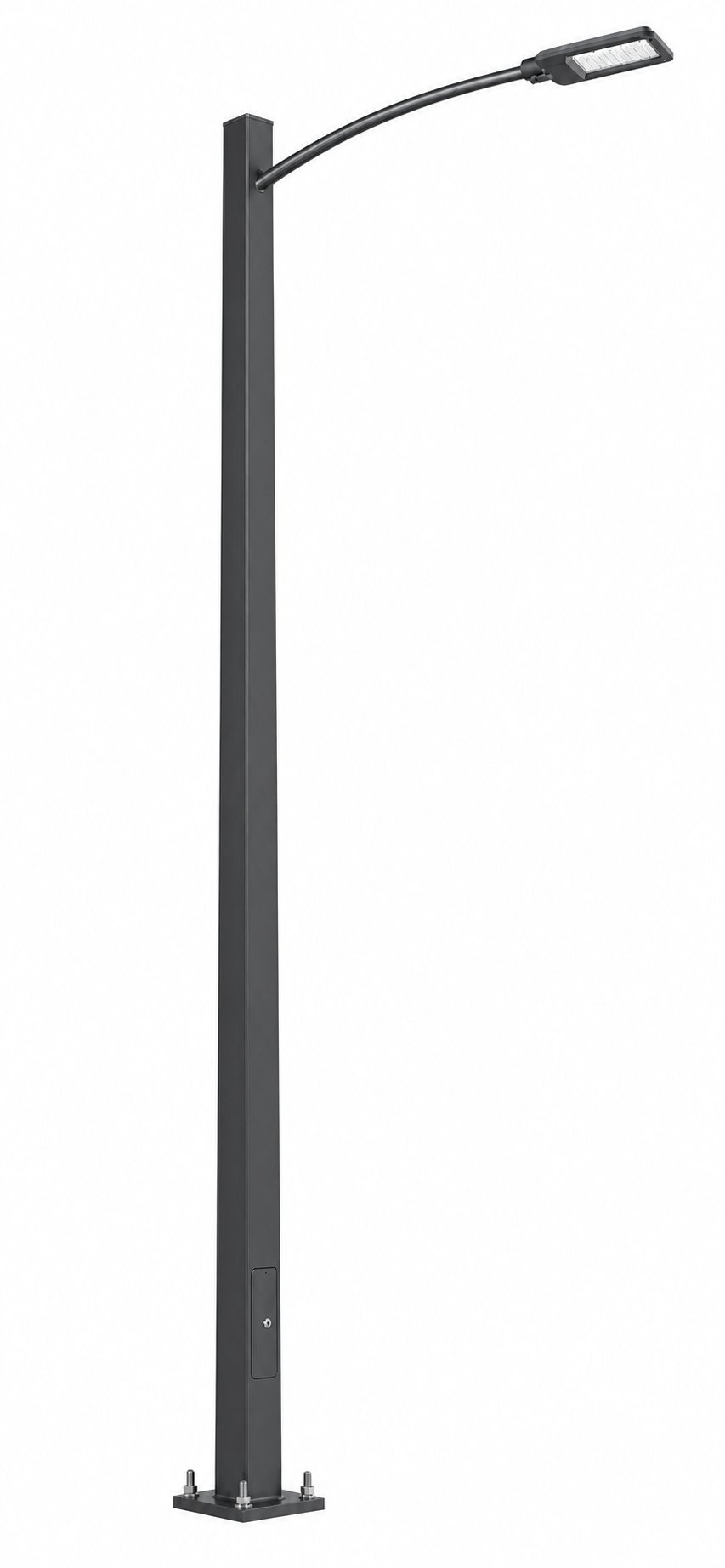

Lighting PolesTERRAPOST Square Poles are engineered to BS EN 40 and manufactured from structural steel S355JR, hot-dip galvanised inside and out to BS EN ISO 1461. Designed for UAE wind conditions at 160 km/h, these poles deliver 25 years of structural performance.
| Parameter | Specification |
| Pole Type | Square Tapered · 4-Face Section |
| Material | Structural Steel S355JR · BS EN 10025 |
| Yield Strength | ≥ 355 N/mm² |
| Tensile Strength | 490–630 N/mm² |
| Design Standard | BS EN 40 |
| Wind Rating | 160 km/h · Gust Factor 1.14 |
| Wall Thickness | 3mm (up to 9m) · 4mm (10–14m) |
| Taper Rate | 8–12mm per metre |
| Surface Finish | Charcoal Grey Powder Coat · HDG base |
| Galvanising Standard | BS EN ISO 1461 |
| Zinc Coating | ≥ 86µm std · ≥ 100µm UAE authority |
| Hand Hole Position | 500mm above base plate |
| Hand Hole Cover | Weatherproof hinged · SS chain · Anti-tamper |
| Anchor Bolt Type | J-type HDG · L-type on request |
| Gusset Plate | Required for poles above 12m |
| Foundation Neck | 150mm above finished ground level |
| Arm Diameter | Ø60mm (6–9m) · Ø75mm (10–14m) |
| Arm Outreach | 1,000–2,500mm |
| Luminaire Capacity | Up to 1 luminaire · Up to 45kg per arm |
| Structural Warranty | 25 Years |
| Ht | Top □ | Base □ | Wall | Hand Hole | Base Plate | Anchor Bolts | Scts |
|---|---|---|---|---|---|---|---|
| 6m | 100 | 150 | 3mm | 400×100 | 250×250×10 | 4×M20×500 | 1 |
| 8m | 100 | 180 | 3mm | 400×140 | 300×300×15 | 4×M20×700 | 1 |
| 9m | 110 | 200 | 3mm | 500×140 | 300×300×15 | 4×M20×700 | 1 |
| 10m | 110 | 220 | 4mm | 500×140 | 300×300×15 | 4×M24×700 | 1 |
| 12m | 120 | 240 | 4mm | 500×140 | 300×300×20 | 4×M24×700 | 1 |
| 14m | 120 | 270 | 4mm | 500×145 | 400×400×20 | 4×M24×900 | 1 |
Hot-dip galvanised steel lighting poles to BS EN 40 — engineered, supplied and installed by Arab Tower across the UAE and internationally.
