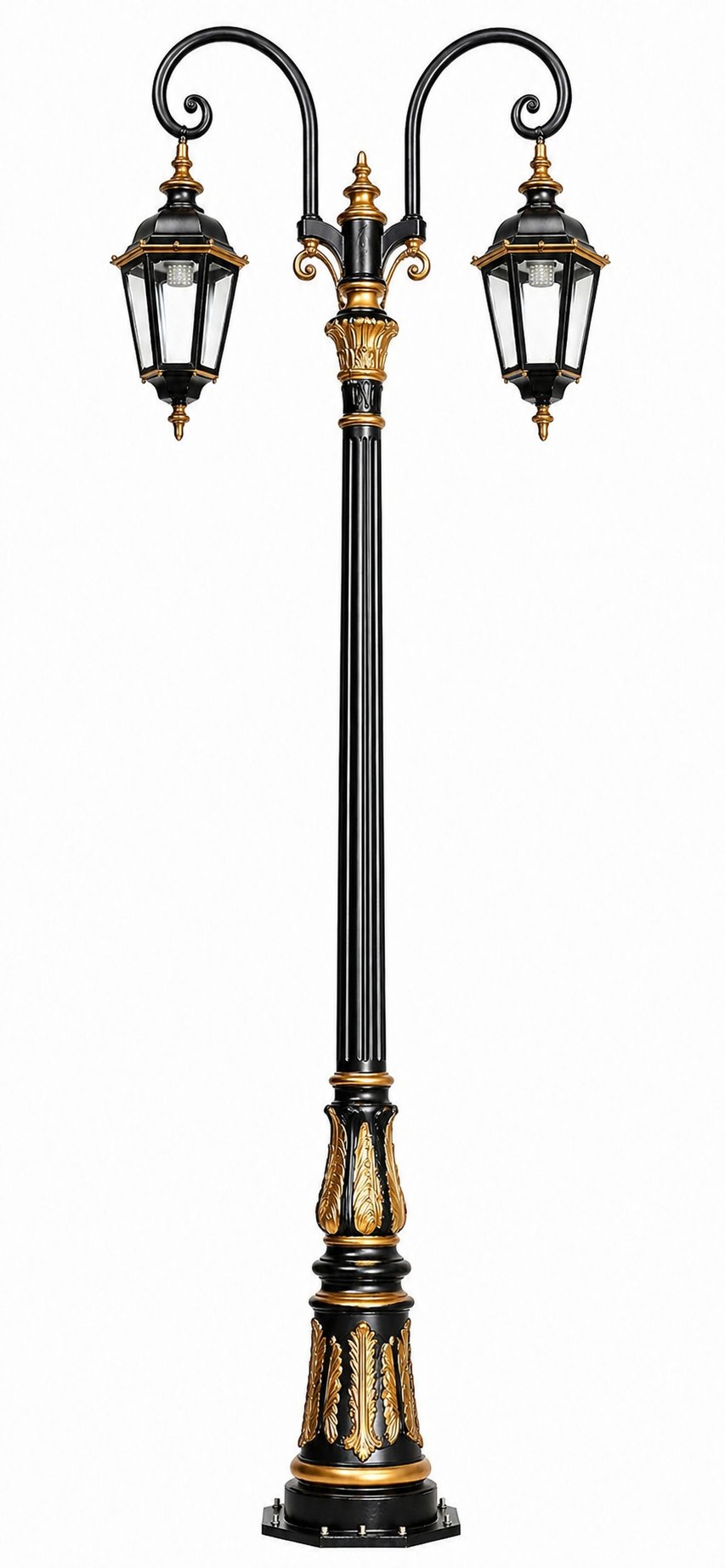

Lighting PolesTERRAPOST Decorative Poles are cast from high-grade aluminium alloy EN AC-46100, finished with black powder coat body and antique gold ornamental details. Engineered to BS EN 40 for UAE wind conditions at 160 km/h, these poles deliver 25 years of structural performance.
| Parameter | Specification |
| Pole Type | Decorative Lantern Pole · Ornamental |
| Construction | Cast Aluminium · Corrosion Resistant |
| Material Grade | EN AC-46100 (AlSi9Cu3) or equivalent |
| Design Standard | BS EN 40 |
| Wind Rating | 160 km/h · Gust Factor 1.14 |
| Surface Finish | Black Powder Coat · Antique Gold Details |
| Coating System | Electrostatic Powder Coat · UV & Salt-Spray Resistant |
| Hand Hole Position | 500mm above base plate |
| Hand Hole Cover | Weatherproof hinged · SS chain · Anti-tamper |
| Anchor Bolt Type | J-type HDG · L-type on request |
| Foundation Neck | 150mm above finished ground level |
| Arm Style | Swan Neck · Double Lantern |
| Arm Outreach | 500–1,500mm |
| Luminaire Capacity | Up to 2 luminaires · Up to 15kg per arm |
| Structural Warranty | 25 Years · Finish Warranty 5 Years |
| Ht | Top Ø | Base Ø | Wall | Hand Hole | Base Plate | Anchor Bolts | Scts |
|---|---|---|---|---|---|---|---|
| 3m | 76 | 130 | 4mm | 300×80 | 200×200×10 | 4×M16×400 | 1 |
| 4m | 76 | 150 | 4mm | 300×80 | 250×250×10 | 4×M16×400 | 1 |
| 5m | 89 | 168 | 4mm | 400×100 | 250×250×10 | 4×M20×500 | 1 |
| 6m | 89 | 180 | 5mm | 400×100 | 300×300×15 | 4×M20×500 | 1 |
Hot-dip galvanised steel lighting poles to BS EN 40 — engineered, supplied and installed by Arab Tower across the UAE and internationally.
