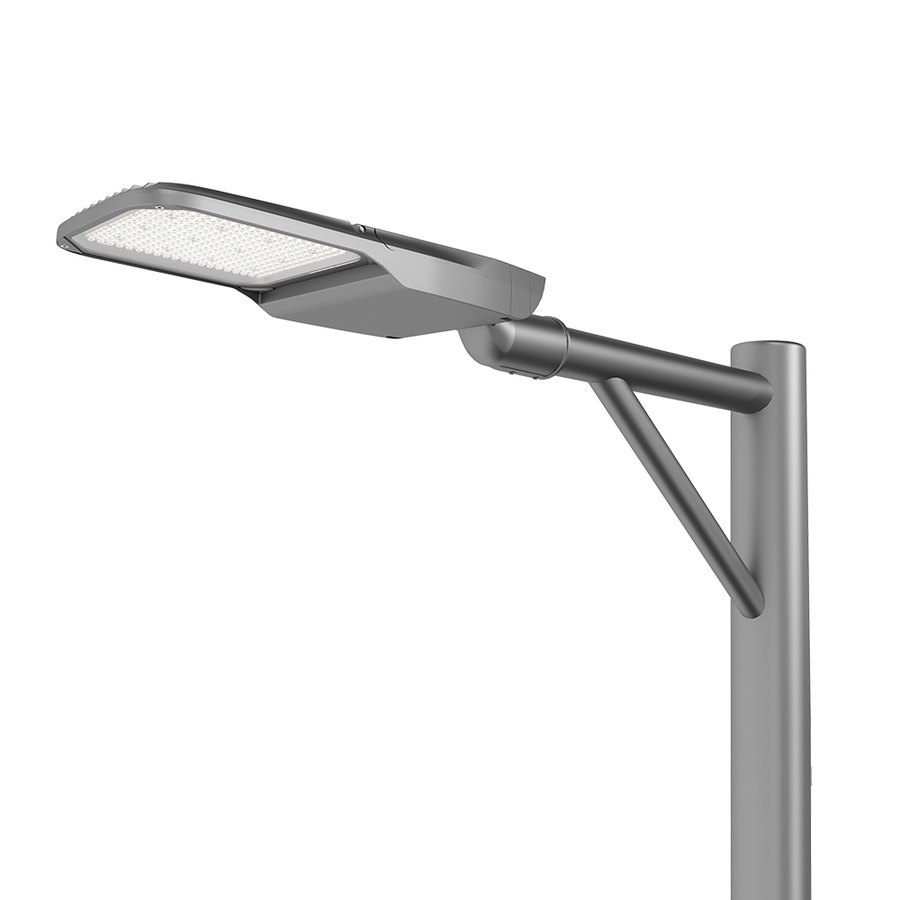

Street Lighting5 Yr WarrantyModel Range from the VEXORA ILH series. 20–300W · 54,000 lm · 185 lm/W. Engineered, supplied and installed by Arab Tower across the UAE and internationally.
| Power Range | 20W – 300W |
| Max Lumen Output | 54,000 lm (5050 chip @ 300W) |
| Luminous Efficacy | Up to 185 lm/W |
| Input Voltage | 100 – 277V AC |
| Power Factor | > 0.95 |
| LED Chip | Lumileds / Seoul — 2835, 3030, 5050 |
| Driver Brand | Moso · Inventronics · Sosen (Philips / OSRAM / uPowerTek optional) |
| Lens | Polycarbonate + Tempered Glass (4/5mm) |
| Operating Temp | −40°C to +55°C |
| Mounting | Side Entry / Post Top Ø42–60mm |
| Surge Protection | 10kV standard / 20kV optional |
| Warranty | 5 Years Limited · 10 Years Preferred (by agreement) |
| Lifespan | L70 > 100,000 hrs @ Ta 25°C |
| ULR | 0% @ 0° inclination (zero upward light) |
| THD | ≤10% @ 220V |
| CCT | 2700K · 3000K · 4000K · 5000K · 5700K · 6500K |
| CRI | Ra70 · Ra80 · Ra90 |
| Model | Power | Lumen Output | Efficacy |
|---|---|---|---|
| ILH-20 | 20W | 3,700 lm | 185 lm/W |
| ILH-30 | 30W | 5,460 lm | 182 lm/W |
| ILH-40 | 40W | 7,320 lm | 183 lm/W |
| ILH-50 | 50W | 9,100 lm | 182 lm/W |
| ILH-60 | 60W | 10,920 lm | 182 lm/W |
| ILH-70 | 70W | 12,950 lm | 185 lm/W |
| ILH-80 | 80W | 14,720 lm | 184 lm/W |
| ILH-90 | 90W | 16,470 lm | 183 lm/W |
| Model | Power | Lumen Output | Efficacy |
|---|---|---|---|
| ILH-100 | 100W | 18,200 lm | 182 lm/W |
| ILH-110 | 110W | 19,800 lm | 180 lm/W |
| ILH-120 | 120W | 21,360 lm | 178 lm/W |
| ILH-150 | 150W | 27,000 lm | 180 lm/W |
| ILH-180 | 180W | 31,320 lm | 174 lm/W |
| ILH-210 | 210W | 37,380 lm | 178 lm/W |
| ILH-240 | 240W | 44,400 lm | 185 lm/W |
| ILH-300 | 300W | 54,000 lm | 180 lm/W |
Model Range — supplied, installed and supported by Arab Tower across the UAE and internationally.
