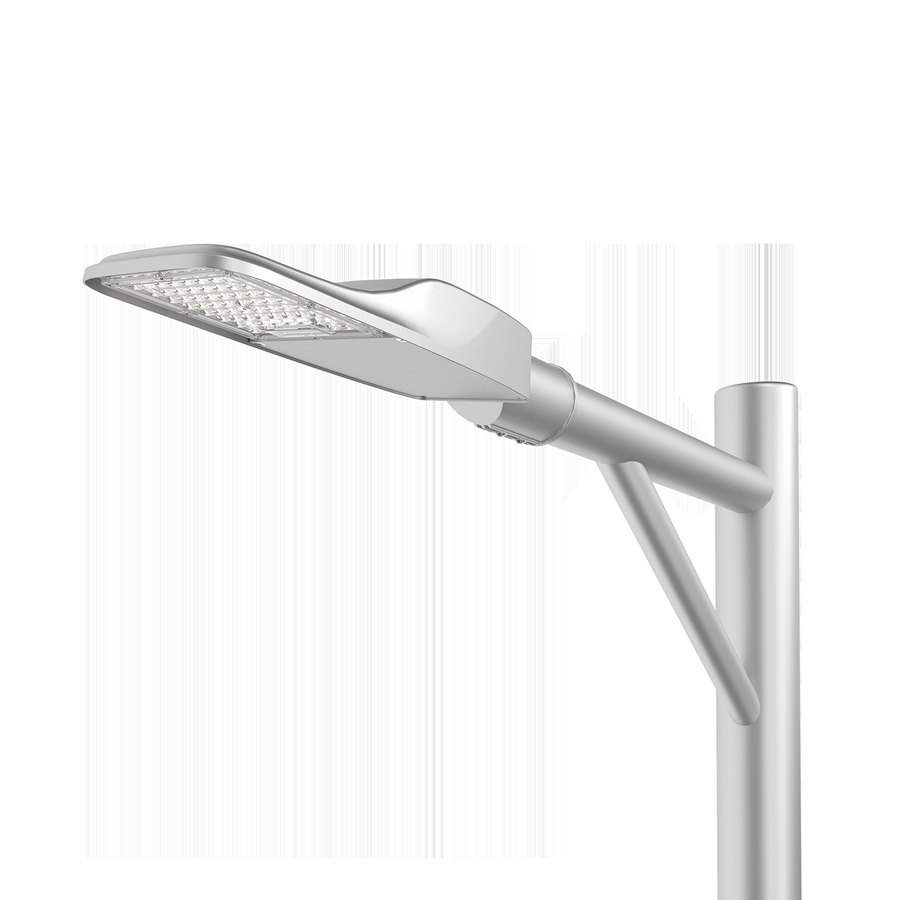

Street Lighting5 Yr WarrantyModel Range from the VEXORA ILF series. 20–230W · 43,240 lm · 220 lm/W. Engineered, supplied and installed by Arab Tower across the UAE and internationally.
| Power Range | 20W – 230W |
| Max Lumen Output | 43,240 lm (5050 chip @ 230W) |
| Luminous Efficacy | Up to 220 lm/W |
| Input Voltage | 100 – 277V AC |
| Power Factor | > 0.95 |
| LED Chip | Lumileds / Seoul — 2835, 3030, 5050 |
| Driver Brand | Moso · Sosen · Inventronics |
| Lens | Polycarbonate |
| Operating Temp | −40°C to +50°C |
| Mounting | Side Entry Only · Ø42–60mm pole |
| Surge Protection | 10kV standard / 20kV optional |
| Warranty | 5 Years Limited · 10 Years Preferred (by agreement) |
| Lifespan | L70 > 100,000 hrs @ Ta 25°C |
| ULR | 0% @ 0° inclination (zero upward light) |
| THD | ≤10% @ 220V |
| CCT | 2700K · 3000K · 4000K · 5000K · 5700K · 6500K |
| CRI | Ra70 · Ra80 · Ra90 |
| Model | Power | Lumen Output | Efficacy |
|---|---|---|---|
| ILF-20 | 20W | 3,900 lm | 195 lm/W |
| ILF-30 | 30W | 5,790 lm | 193 lm/W |
| ILF-40 | 40W | 7,680 lm | 192 lm/W |
| ILF-50 | 50W | 9,550 lm | 191 lm/W |
| ILF-60 | 60W | 11,280 lm | 188 lm/W |
| ILF-70 | 70W | 13,370 lm | 191 lm/W |
| Model | Power | Lumen Output | Efficacy |
|---|---|---|---|
| ILF-80 | 80W | 15,200 lm | 190 lm/W |
| ILF-100 | 100W | 18,800 lm | 188 lm/W |
| ILF-150 | 150W | 28,200 lm | 188 lm/W |
| ILF-190 | 190W | 36,480 lm | 192 lm/W |
| ILF-210 | 210W | 39,900 lm | 190 lm/W |
| ILF-230 | 230W | 43,240 lm | 188 lm/W |
Model Range — supplied, installed and supported by Arab Tower across the UAE and internationally.
