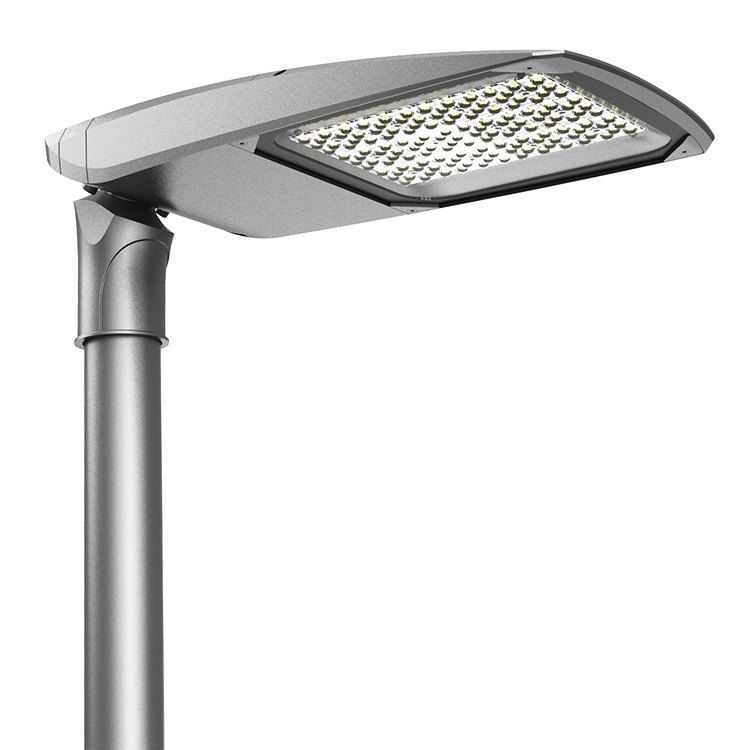

Name: VEXORA ILA
Brand: VEXORA by Arab Tower

Model Range from the VEXORA ILA series. 20–300W · 54,000 lm · 190 lm/W. Engineered, supplied and installed by Arab Tower across the UAE and internationally.

Request a Quotation Download Datasheet

Power Range

20–300W

Luminous Flux

54,000 lm

Efficacy

190 lm/W

Protection

IP66 · IK08/IK09

Technical Specification

Key Features

Up to 190 lm/W — A5050 chip option delivers industry-leading efficacy
3G Vibration · IEC 68-2-6 — Certified for highway & bridge pole installations
Tool-less Maintenance — Driver and LED module accessible without tools
Zhaga & NEMA Ready — IoT sensor and smart control compatible (optional)
Aerodynamic Streamlined Housing — Wind-optimised streamlined profile reduces pole load and improves structural performance
L70 > 100,000 Hours — Lumen maintenance rated for 25+ year service life

Technical Specifications

Power Range	20W – 300W
Max Lumen Output	54,000 lm
Luminous Efficacy	Up to 190 lm/W
Input Voltage	100–277V AC
THD	≤10% @ 220V
Power Factor	≥0.95 @ 220V
LED Chip	Lumileds / Seoul — 3030, 5050 / A5050
Driver Brand	Inventronics · Sosen (Philips / OSRAM / Moso / uPowerTek optional)
Lens	Polycarbonate + Tempered Glass (4–5mm)
Operating Temp	−40°C to +55°C 120–200W: max +45°C · 240–300W: max +50°C
Vibration	3G (20–180W) · 5G (240–300W) · IEC 68-2-6
IP / IK Rating	IP66 · IK09 (20–110W) · IK08 (120–300W) · EN 60529 / EN 62262
Mounting	Side Entry / Post Top · Ø42–60mm
Surge Protection	10kV standard · 20kV optional
CCT	2700K · 3000K · 4000K · 5000K · 5700K · 6500K
CRI	Ra70 · Ra80 · Ra90

Model Range

Model	Power	Lumen Output	Efficacy
ILA-20	20W	3,240 lm	162 lm/W
ILA-30	30W	4,740 lm	158 lm/W
ILA-40	40W	6,480 lm	162 lm/W
ILA-50	50W	8,000 lm	160 lm/W
ILA-60	60W	9,480 lm	158 lm/W
ILA-70	70W	11,480 lm	164 lm/W
ILA-80	80W	12,960 lm	162 lm/W
ILA-90	90W	14,400 lm	160 lm/W
ILA-100	100W	15,800 lm	158 lm/W
ILA-110	110W	17,050 lm	155 lm/W
ILA-120	120W	19,680 lm	164 lm/W

Model Range

Model	Power	Lumen Output	Efficacy
ILA-130	130W	21,190 lm	163 lm/W
ILA-140	140W	22,540 lm	161 lm/W
ILA-150	150W	24,000 lm	160 lm/W
ILA-160	160W	24,960 lm	156 lm/W
ILA-170	170W	26,010 lm	153 lm/W
ILA-180	180W	27,000 lm	150 lm/W
ILA-240	240W	39,120 lm	163 lm/W
ILA-250	250W	40,500 lm	162 lm/W
ILA-270	270W	43,200 lm	160 lm/W
ILA-300	300W	46,800 lm	156 lm/W

Applications

Road & HighwayArterial RoadsUrban Main RoadsRoundaboutsBridge & FlyoverPort & Airport Roads
