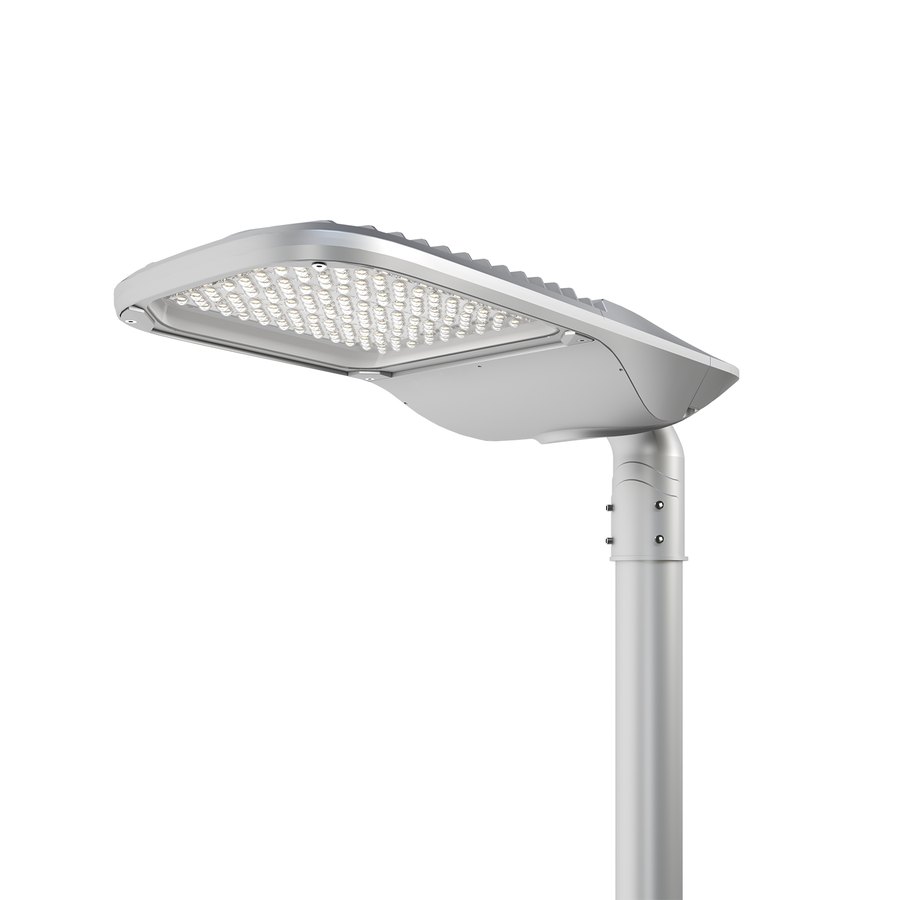

Street Lighting5 Yr WarrantyModel Range from the VEXORA IL03 series. 20–230W · 31,050 lm · 145 lm/W. Engineered, supplied and installed by Arab Tower across the UAE and internationally.
| Power Range | 20W – 230W |
| Max Lumen Output | 31,050 lm |
| Luminous Efficacy | Up to 145 lm/W |
| Input Voltage | 100–277V AC |
| THD | <20% @ 220V |
| Power Factor | ≥0.95 @ 220V |
| LED Chip | Lumileds — 3030 only |
| Driver Brand | Meanwell · Sosen · Philips / Class 1, Class 2, EU |
| Lens | Polycarbonate (no tempered glass) |
| Operating Temp | −40°C to +50°C (all wattages) |
| Vibration | 3G · IEC 68-2-6 (all wattages) |
| IP / IK Rating | IP66 · IK09 · EN 60529 / EN 62262 |
| Mounting | Side Entry Only · Ø42–60mm |
| Surge Protection | 10kV standard · 20kV optional |
| CCT | 2700K · 3000K · 4000K · 5000K · 5700K · 6500K |
| CRI | Ra70 · Ra80 · Ra90 |
| Model | Power | Lumen Output | Efficacy |
|---|---|---|---|
| IL03-20 | 20W | 2,900 lm | 145 lm/W |
| IL03-30 | 30W | 4,350 lm | 145 lm/W |
| IL03-50 | 50W | 7,000 lm | 140 lm/W |
| IL03-60 | 60W | 8,100 lm | 135 lm/W |
| IL03-70 | 70W | 9,800 lm | 140 lm/W |
| IL03-80 | 80W | 10,800 lm | 135 lm/W |
| Model | Power | Lumen Output | Efficacy |
|---|---|---|---|
| IL03-100 | 100W | 13,500 lm | 135 lm/W |
| IL03-120 | 120W | 16,200 lm | 135 lm/W |
| IL03-150 | 150W | 20,250 lm | 135 lm/W |
| IL03-180 | 180W | 25,200 lm | 140 lm/W |
| IL03-200 | 200W | 27,000 lm | 135 lm/W |
| IL03-230 | 230W | 31,050 lm | 135 lm/W |
Model Range — supplied, installed and supported by Arab Tower across the UAE and internationally.
