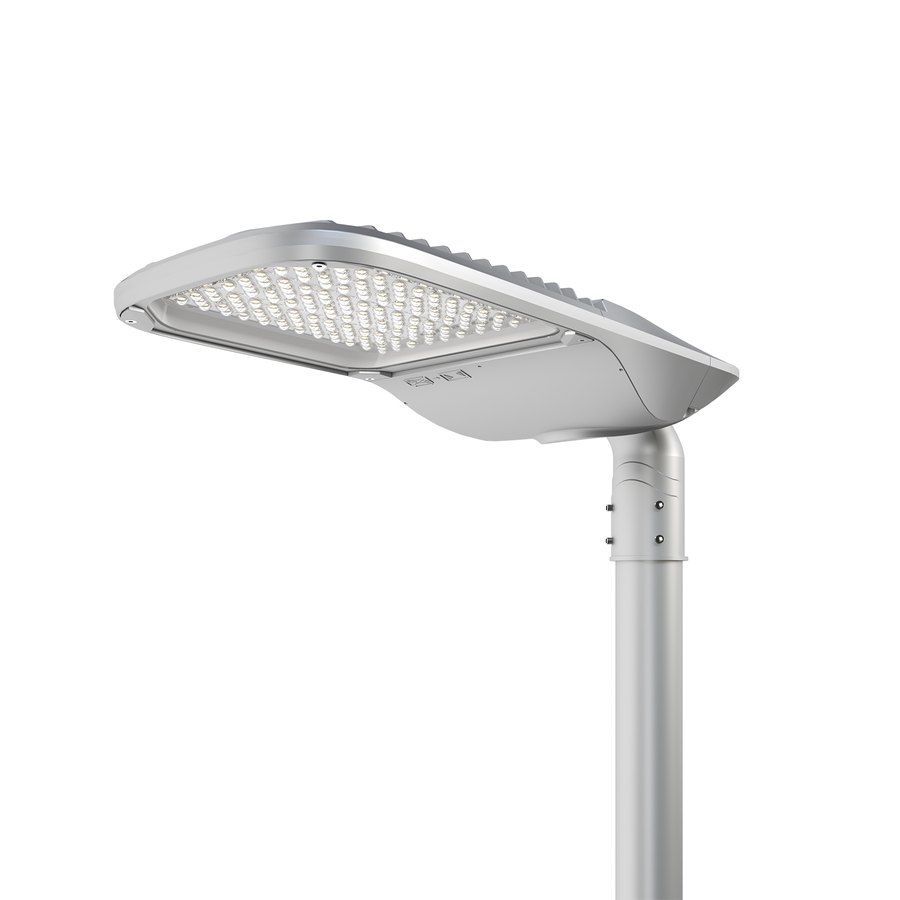

Street Lighting5 Yr WarrantyModel Range from the VEXORA IL02 series. 20–300W · 54,600 lm · 210 lm/W. Engineered, supplied and installed by Arab Tower across the UAE and internationally.
| Power Range | 20W – 300W |
| Max Lumen Output | 54,600 lm |
| Luminous Efficacy | Up to 210 lm/W |
| Input Voltage | 100–277V AC |
| THD | ≤10% @ 220V |
| Power Factor | ≥0.95 @ 220V |
| LED Chip | Lumileds / Seoul — 3030, 5050 / A5050 |
| Driver Brand | Inventronics · Sosen · Philips / Class 1, Class 2, EU |
| Lens | Polycarbonate + Tempered Glass (4mm / 5mm IL02s) |
| Operating Temp | −40°C to +55°C 200W+: max +50°C |
| Vibration | 3G · IEC 68-2-6 (all wattages) |
| IP / IK Rating | IP66 · IK09 (20–70W IL02s) · IK08 (80–300W) · EN 60529 / EN 62262 |
| Mounting | Side Entry (20–70W) · Side Entry / Post Top (80–300W) · Ø42–60mm |
| Surge Protection | 10kV standard · 20kV optional |
| CCT | 2700K · 3000K · 4000K · 5000K · 5700K · 6500K |
| CRI | Ra70 · Ra80 · Ra90 |
| Model | Power | Lumen Output | Efficacy |
|---|---|---|---|
| IL02-20 | 20W | 3,900 lm | 195 lm/W |
| IL02-30 | 30W | 5,790 lm | 193 lm/W |
| IL02-40 | 40W | 7,680 lm | 192 lm/W |
| IL02-50 | 50W | 9,550 lm | 191 lm/W |
| IL02-60 | 60W | 11,400 lm | 190 lm/W |
| IL02-70 | 70W | 13,160 lm | 188 lm/W |
| IL02-80 | 80W | 15,200 lm | 190 lm/W |
| IL02-90 | 90W | 16,920 lm | 188 lm/W |
| IL02-100 | 100W | 18,700 lm | 187 lm/W |
| Model | Power | Lumen Output | Efficacy |
|---|---|---|---|
| IL02-120 | 120W | 22,200 lm | 185 lm/W |
| IL02-130 | 130W | 24,700 lm | 190 lm/W |
| IL02-150 | 150W | 28,200 lm | 188 lm/W |
| IL02-160 | 160W | 29,920 lm | 187 lm/W |
| IL02-180 | 180W | 33,300 lm | 185 lm/W |
| IL02-200 | 200W | 37,400 lm | 187 lm/W |
| IL02-220 | 220W | 40,920 lm | 186 lm/W |
| IL02-230 | 230W | 42,320 lm | 184 lm/W |
| IL02-300 | 300W | 54,600 lm | 182 lm/W |
Model Range — supplied, installed and supported by Arab Tower across the UAE and internationally.
