High Mast Lighting5 Yr Warranty

Model Range

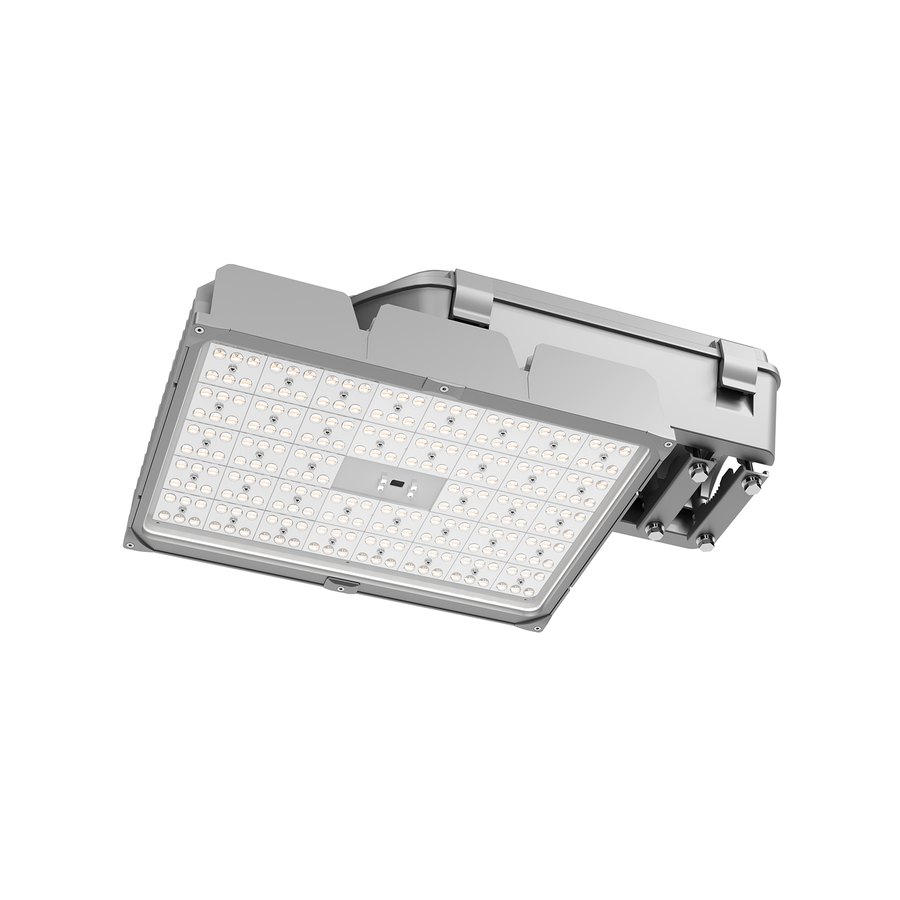

Name: VEXORA HMA
Brand: VEXORA by Arab Tower

Model Range from the VEXORA HMA series. 400–600W · 84,000 lm · 140 lm/W. Engineered, supplied and installed by Arab Tower across the UAE and internationally.

Request a Quotation Download Datasheet

Power Range

400–600W

Luminous Flux

84,000 lm

Efficacy

140 lm/W

Protection

IP66 · IK09

Technical Specification

Key Features

Up to 140 lm/W — Lumileds 5050 / Seoul 5050 / OSRAM P8 — premium LED options for critical infrastructure
3G Vibration · IEC 68-2-6 — Rated for high mast pole installations and heavy wind load environments
Tool-less Maintenance — Hinged driver box with buckle design — no tools required for access and servicing
360° Aim Adjustment — Built-in dial plate with precise aiming for targeted light distribution
Dual Mounting System — Type-A side entry for high mast poles · Type-B U-bracket for flood and facade applications
L70 > 100,000 Hours — Lumen maintenance rated for 25+ year service life

Technical Specifications

Power Range	400W – 600W
Max Lumen Output	84,000 lm
Luminous Efficacy	Up to 140 lm/W
Input Voltage	100–277V AC / 250–500V AC
THD	≤10% @ 220V
Power Factor	≥0.96 @ 220V
LED Chip	Lumileds 5050 / Seoul 5050 / OSRAM P8
Driver Brand	Inventronics · OSRAM / Class 1, EU
Lens	Polycarbonate + Tempered Glass (5mm)
Operating Temp	−40°C to +55°C 600W: max +50°C
Vibration	3G · IEC 68-2-6
IP / IK Rating	IP66 · IK09 · EN 60529 / EN 62262
Mounting	Type-A Side Entry · Ø42/60/76mm · Type-B U-Bracket
Surge Protection	10kV standard · 20kV optional
CCT	2700K · 3000K · 4000K · 5000K · 5700K · 6500K
CRI	Ra70 · Ra80 · Ra90

Model Range

Model	Power	Lumen Output	Efficacy
HMA-400	400W	56,000 lm	140 lm/W
HMA-480	480W	67,200 lm	140 lm/W
HMA-600	600W	84,000 lm	140 lm/W

Applications

Highway InterchangeHigh Mast LightingPort & Loading BayToll PlazaAirport ApronSports LightingCar ParksFacade Lighting

Model Range

Key Features

Technical Specifications

Model Range

Applications

Specify VEXORA HMA for your project
