Area & Parking Lighting5 Yr Warranty

Model Range

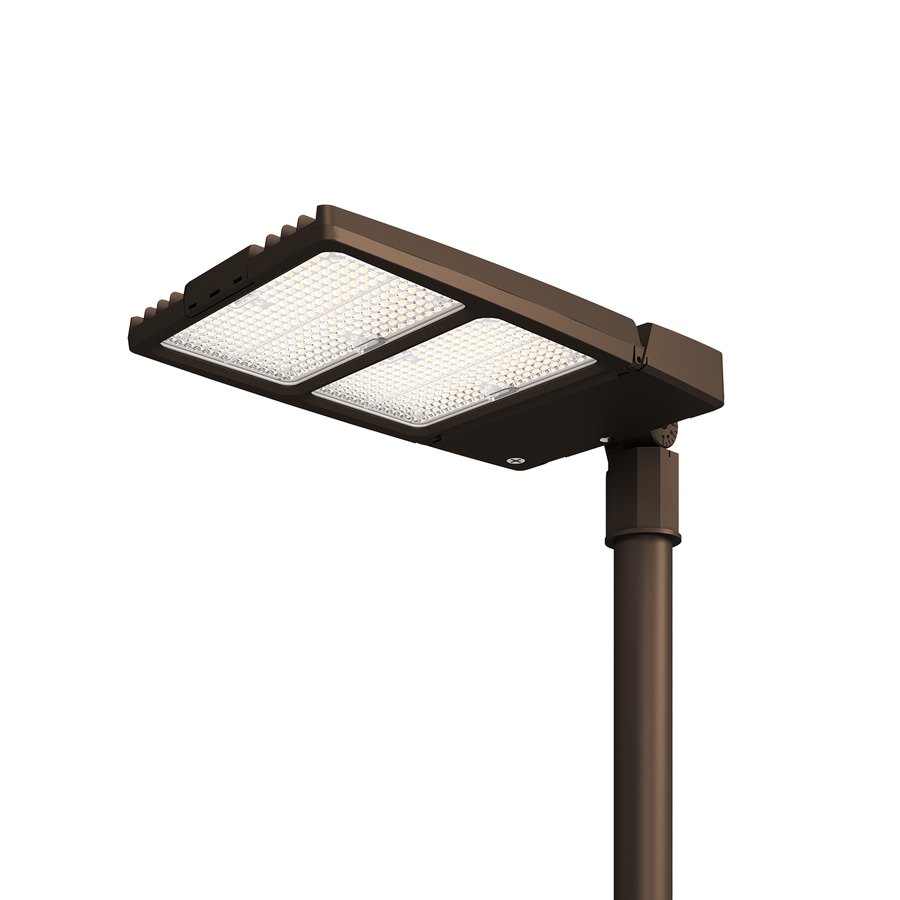

Name: VEXORA PLB
Brand: VEXORA by Arab Tower

Model Range from the VEXORA PLB series. 100–300W · Up to 160 lm/W · IP66 · IK10. Engineered, supplied and installed by Arab Tower across the UAE and internationally.

Request a Quotation Download Datasheet

Power Range

100–300W

Efficacy

Up to 160 lm/W

Protection

IP66 · IK10

Spec

L90B10 >100K hrs

Technical Specification

Key Features

Lumileds 2835 LED Source — Premium chip performance with consistent output across the full wattage range
User-Replaceable Lens — Buckle-release design for effortless field maintenance and component recycling
BUG Rating B0-U0-G0 — Zero uplight — compliant with dark-sky and parking lot cutoff requirements
3-in-1 Watt-Selectable — Field-adjustable wattage via DIP switch — one fixture covers three power levels
Six Bracket Options — Slip fitter, adjustable arm, slide & lock, square pole, round pole, trunnion
Reserved Sensor Positions — Pre-reserved top and bottom ports for photocell and PIR sensor installation
IP66 · IK10 Rated — Full weatherproof and impact resistance for exposed outdoor environments
L90B10 >100,000 Hours — Superior lumen maintenance at Ta 25°C — rated for 25+ year service life

Technical Specifications

Power Range	100W – 300W (3-in-1 watt-selectable)
Input Voltage	100–277V AC (NV) · 200–480V AC (HV optional)
Power Factor	≥0.97
Surge Protection	10kV SPD
Dimming	0–10V · Dim to 10%
LED Source	Lumileds 2835 · Other brands on request
Efficacy	150–160 lm/W (±5%) @ CRI 70Ra, 4000K
CRI	Ra70 standard · Ra80 / Ra90 optional
CCT Options	3000K · 4000K · 5000K · 5700K · 6500K
Housing	Die-cast aluminium (EN AC-46100)
IP / IK Rating	IP66 · IK10 · EN 60529 / EN 62262
Lens	Polycarbonate (PC) — optical grade
Operating Temp	180W / 300W: −40°C to +45°C · Others: −40°C to +50°C
Vibration	3G · IEC 68-2-6
Mounting	6 bracket types · Ø40 / 60 / 76mm · Arm · Slide & Lock · Square / Round pole · Trunnion
CCT	3000K · 4000K · 5000K · 5700K · 6500K
CRI	Ra70 standard · Ra80 / Ra90 optional

Model Range

Model	Watt-Selectable Range	Luminous Flux (lm)	Efficacy	Net Weight
PLB-100W	60–75–100W	9,600–16,000 lm	150–160 lm/W	3.2 kg
PLB-150W	75–100–150W	12,000–22,500 lm	150–160 lm/W	3.2 kg
PLB-180W	115–150–180W	17,500–27,000 lm	150–160 lm/W	3.2 kg
PLB-240W	180–200–240W	27,000–36,000 lm	150–160 lm/W	4.0 kg
PLB-300W	200–240–300W	30,000–45,000 lm	150–160 lm/W	4.0 kg

Applications

Parking Lots & GaragesRiverside & Jogging TracksUrban StreetsBridges & OverpassesBike & Pedestrian PathsRailway & Transit AreasSquares & Public AreasSports Courts

Model Range

Key Features

Technical Specifications

Model Range

Applications

Specify VEXORA PLB for your project
